Product Model

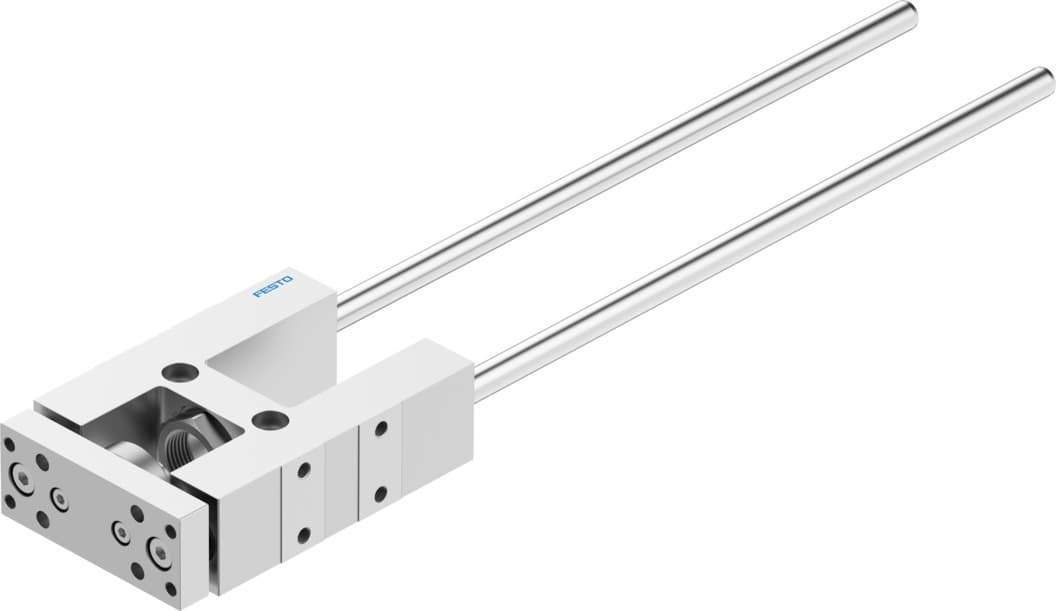

fen-25-250-gf
Selling Points
- 1Precision Stroke: The FEN-25-250-GF guide unit offers a stroke length of 250 mm, ensuring precise movement and control in your industrial applications.
- 2Robust Design: Constructed with high-alloy steel for the guide component and anodised wrought aluminium alloy for the housing, this unit provides robustness and durability.
- 3Explosion Protection: Equipped with a plain-bearing guide and designed for explosion protection, the FEN-25-250-GF ensures safe operation in hazardous environments.
- 4Versatile Mounting: Available with optional mounting positions, this guide unit can be easily integrated into various systems, offering flexibility in installation.
- 5Compliance and Safety: Meets LABS (PWIS) conformity and VDMA24364-B2-L standards, ensuring compliance with industry safety regulations and guidelines.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke | 250mm |
Mounting position | Any | Guide | Sliding guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Displacement force | 15N | Moving mass | 569g |
Product weight | 1166g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204058 |
Specifications may be subject to change without notice
