Product Model

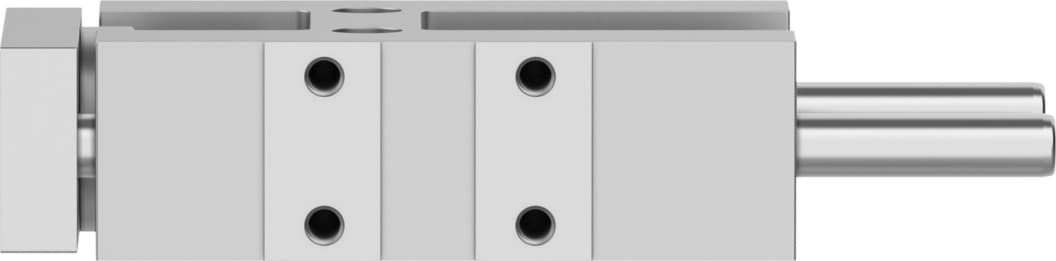

fen-25-25-kf
Selling Points
- 1The Fen-25-250-KF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement in pneumatic systems.
- 2Built with tempered steel, this guide unit offers durability and resistance to wear and tear, making it suitable for demanding industrial applications.
- 3With a stroke range of 2 mm to 250 mm, the Fen-25-250-KF is versatile and can be used in various applications requiring different levels of movement.
- 4Designed with explosion protection in mind, this guide unit ensures safe operation in potentially hazardous environments.
- 5The Fen-25-250-KF is designed for easy installation with a via female thread mounting option, simplifying the integration process in your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke | 25mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 520N | Max. force Fy static | 830N |
Max. force Fz | 520N | Max. force Fz static | 830N |
Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
Max. torque My | 20Nm | Max. static moment My | 31Nm |
Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
Displacement force | 15N | Moving mass | 299g |
Product weight | 843g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204033 |
Specifications may be subject to change without notice
