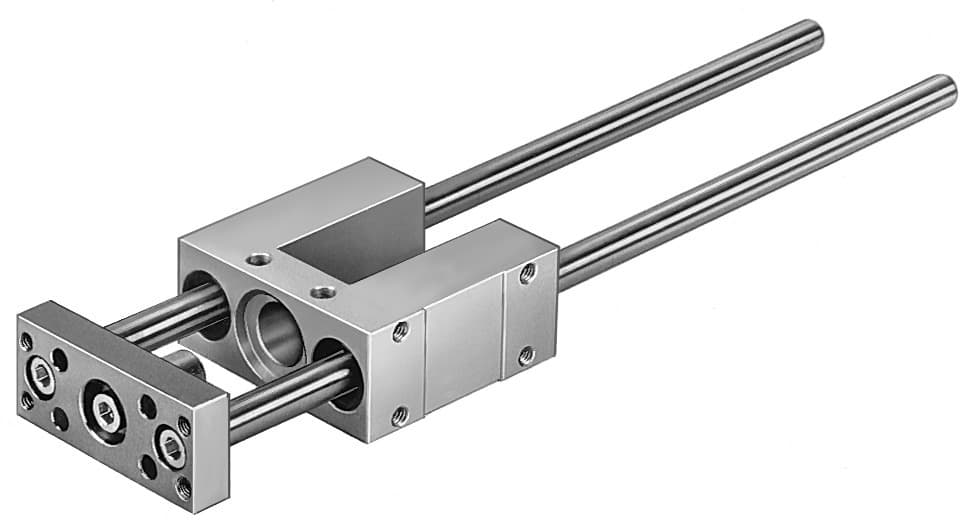

Product Model
fen-8/10- -gf
Selling Points
- 1The Fen-8/10 guide unit features recirculating ball bearing guides, ensuring smooth and precise movement in pneumatic systems.
- 2This guide unit offers optional mounting positions, allowing for flexible installation to suit various application requirements.
- 3With its recirculating ball bearing design, the Fen-8/10 provides superior stability and durability, reducing wear and tear.
- 4Designed with safety in mind, the Fen-8/10 guide unit offers explosion protection features, making it suitable for hazardous environments.
- 5Festo's Fen-8/10 guide unit can be configured to meet specific needs, ensuring optimal performance in a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8/10 | Stroke | 1mm 100mm |
Mounting position | Any | Guide | Sliding guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Displacement force | 15N | Additional moving mass per 10?mm stroke | 8g |
Basic weight with 0?mm stroke | 332g | Additional weight per 10?mm stroke | 8g |
Center of gravity of moving mass with 0 mm stroke | 30mm | Center of gravity of moving mass with 10 mm stroke | 4.9mm |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | High-alloy steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 35196 |
Specifications may be subject to change without notice
