Product Model

feng-32-400-gf

In Stock
Last updated: 2025/4/17

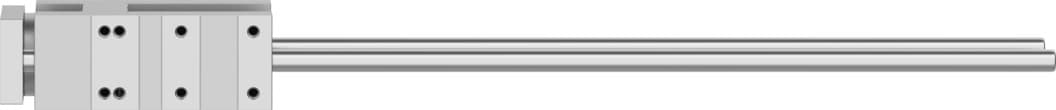

Festo feng-32-400-gf

Selling Points

  • 1The Festo FEN-32-400-GF pneumatic cylinder features a high-alloy steel piston rod for excellent running performance and long service life.
  • 2Equipped with adjustable pneumatic cushioning, this cylinder reduces noise and vibration, making it suitable for medium to heavy loads and high-speed applications.
  • 3The FEN series cylinders conform to the ISO 15552 standard, ensuring interchangeability with other hydraulic and pneumatic cylinders.
  • 4The cylinder can be mounted in any position due to its ISO 15552 compliance, and optional accessories like swivel brackets and foot mounts provide additional flexibility.
  • 5With a low-friction design, the Festo FEN-32-400-GF ensures continuous operation and is designed to meet the strict quality conditions imposed by RS Components.
Product Details
feng-32-400-gf
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Size
32
Stroke
400mm
Mounting position
Any
Guide
Sliding guide
Structural design
Guide
Explosion prevention and protection
Observe the information on the certificate
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-20°C 80°C
Displacement force
30N
Moving mass
1158g
Product weight
2250g
Type of mounting
With internal thread
Note on materials
RoHS-compliant
Material of guide component
High-alloy steel
Housing material
Wrought aluminum alloy, anodized
Material of yoke plate
Wrought aluminum alloy, anodized
Manufacturer ID
8204067

Specifications may be subject to change without notice
