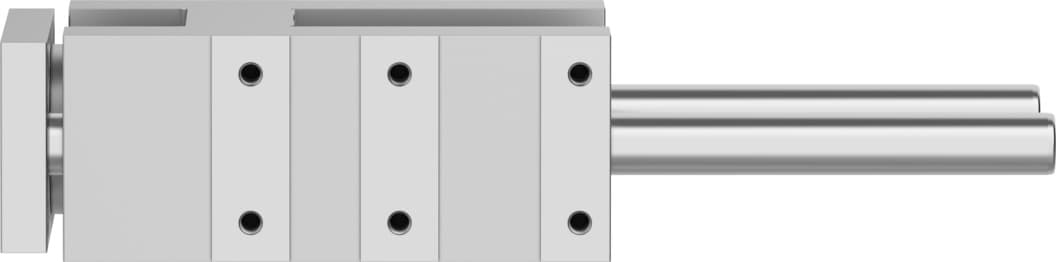

Festo FENG-40-100-KF: High-Quality Pneumatic Guided Cylinder

Selling Points

1The Festo FENG-40-100-KF features a recirculating ball bearing guide, ensuring smooth and precise movement in pneumatic systems.
2This guide unit is designed for standards-based cylinders, providing optimal protection against torsion and lateral forces.
3With a 40mm bore and 100mm stroke, the FENG-40-100-KF offers versatile sizing options for various industrial applications.
4The FENG series is ATEX compliant, making it suitable for use in hazardous environments where explosion protection is required.
5The FENG-40-100-KF is part of Festo's high-quality metric series, known for its reliability and durability in pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	40	Stroke	100mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	1000N	Max. force Fy static	1260N
Max. force Fz	1000N	Max. force Fz static	1260N
Max. torque Mx	44Nm	Max. static moment Mx	55Nm
Max. torque My	52Nm	Max. static moment My	65Nm
Max. torque Mz	52Nm	Max. static moment Mz	65Nm
Displacement force	15N	Product weight	2690g
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	34500

Specifications may be subject to change without notice
