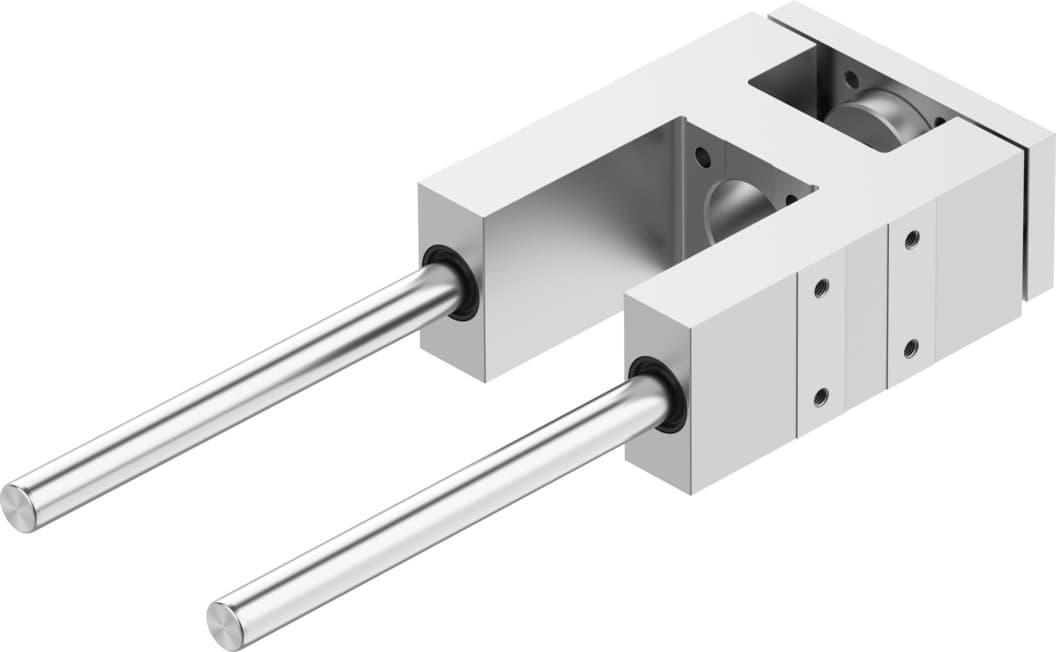

Festo FENG-40-160-KF Guide Unit: High Accuracy and Durability

Selling Points

1The Festo FENG-40-160-KF guide unit is designed with a recirculating ball bearing guide, ensuring high accuracy and durability in various applications.
2This guide unit offers flexible installation with optional mounting positions, making it versatile for different setup requirements.
3The FENG-40-160-KF operates within a wide ambient temperature range of -20°C to 80°C, suitable for various environmental conditions.
4With a maximum force of 1,000 N and static force of 1,260 N, this guide unit can handle significant loads, making it reliable for demanding applications.
5The compact design of the FENG-40-160-KF guide unit, with a size of 40 mm and stroke of 160 mm, makes it ideal for space-constrained environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	40	Stroke	160mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	1000N	Max. force Fy static	1260N
Max. force Fz	1000N	Max. force Fz static	1260N
Max. torque Mx	44Nm	Max. static moment Mx	55Nm
Max. torque My	52Nm	Max. static moment My	65Nm
Max. torque Mz	52Nm	Max. static moment Mz	65Nm
Displacement force	15N	Product weight	2882g
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	34501

Specifications may be subject to change without notice
