Product Model

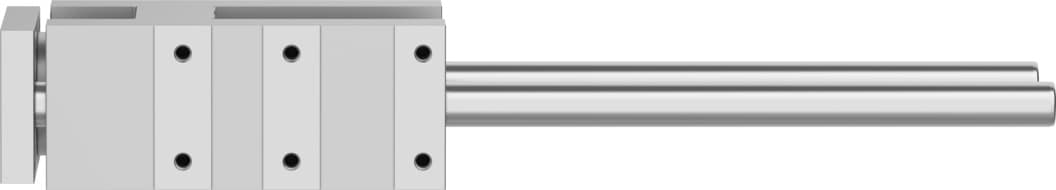

feng-40-200-kf
Selling Points
- 1The FENG-40-200-KF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement with minimal friction.
- 2Designed for Zone 1, Zone 2, Zone 21, and Zone 22 ATEX environments, this guide unit meets stringent safety standards for explosive atmospheres.
- 3Made from tempered steel for the guide component and anodized wrought aluminum alloy for the housing and yoke plate, this unit offers durability and resistance to corrosion.
- 4Operates effectively in ambient temperatures ranging from -20 °C to 80 °C, making it suitable for various industrial settings.
- 5With a maximum force of 1000 N and static force of 1260 N, the FENG-40-200-KF is capable of handling demanding applications with ease.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Stroke | 200mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1000N | Max. force Fy static | 1260N |
Max. force Fz | 1000N | Max. force Fz static | 1260N |
Max. torque Mx | 44Nm | Max. static moment Mx | 55Nm |
Max. torque My | 52Nm | Max. static moment My | 65Nm |
Max. torque Mz | 52Nm | Max. static moment Mz | 65Nm |
Displacement force | 15N | Product weight | 3010g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34502 |
Specifications may be subject to change without notice
