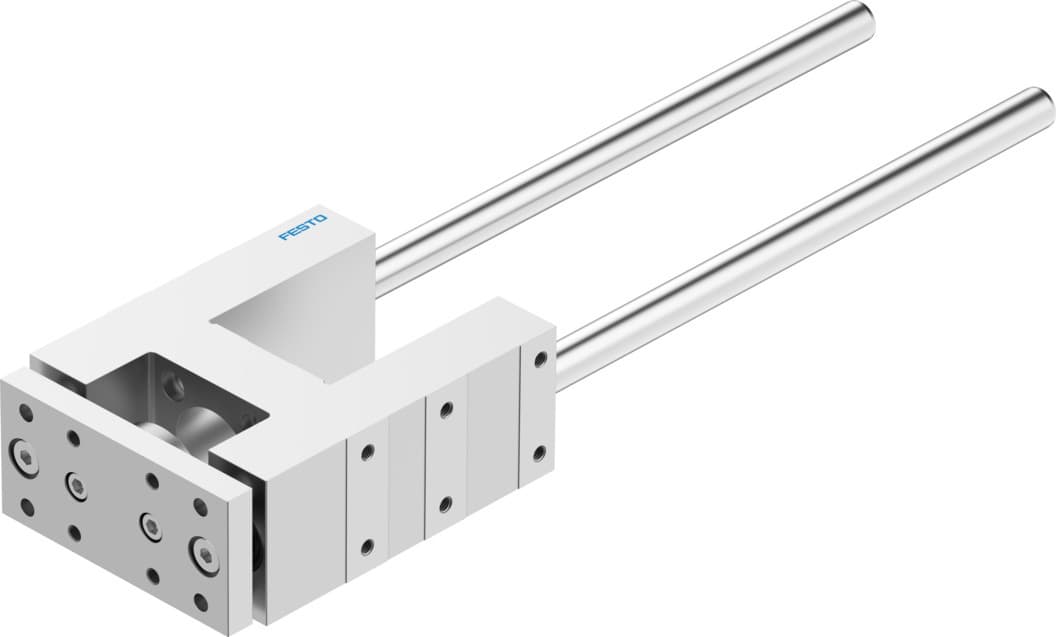

Festo FENG-40-250-KF Guide Unit: Precision and Reliability

Selling Points

1The FENG-40-250-KF guide unit ensures precise movement with its recirculating ball bearing guide, minimizing wear and tear.
2Designed with explosion protection in mind, this guide unit is ideal for applications where safety is paramount.
3The optional mounting position allows for flexible installation, accommodating various system configurations.
4Constructed with tempered steel for the guide component and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
5Capable of withstanding maximum forces of 1000 N in both Fy and Fz directions, making it suitable for demanding applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	40	Stroke	250mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	1000N	Max. force Fy static	1260N
Max. force Fz	1000N	Max. force Fz static	1260N
Max. torque Mx	44Nm	Max. static moment Mx	55Nm
Max. torque My	52Nm	Max. static moment My	65Nm
Max. torque Mz	52Nm	Max. static moment Mz	65Nm
Displacement force	15N	Product weight	3170g
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	34503

Specifications may be subject to change without notice
