Product Model

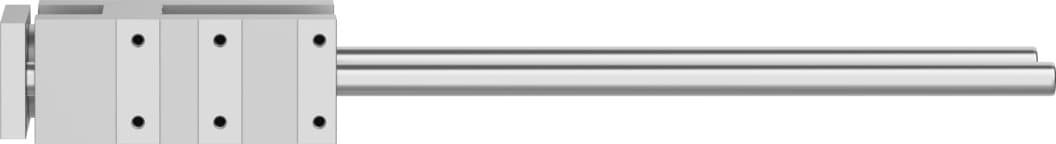

feng-40-320-kf
Selling Points
- 1The FENG-40-320-KF guide unit provides a high accuracy of guidance, ensuring precise movement and control in your applications.
- 2Equipped with a recirculating ball bearing guide, this unit serves for protection against rotation, ensuring stability and reliability.
- 3The guide unit can be assembled in any position, offering flexibility in your system design and installation.
- 4With a maximum force of 1,000 N and a maximum torque of 44 Nm, this guide unit delivers robust performance in various operating conditions.
- 5Constructed from heat-treated steel and anodized wrought aluminum alloy, the FENG-40-320-KF guide unit is built to last, withstanding ambient temperatures from -20°C to 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Stroke | 320mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1000N | Max. force Fy static | 1260N |
Max. force Fz | 1000N | Max. force Fz static | 1260N |
Max. torque Mx | 44Nm | Max. static moment Mx | 55Nm |
Max. torque My | 52Nm | Max. static moment My | 65Nm |
Max. torque Mz | 52Nm | Max. static moment Mz | 65Nm |
Displacement force | 15N | Product weight | 3394g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34504 |
Specifications may be subject to change without notice
