Product Model
feng-40-500-kf
Selling Points

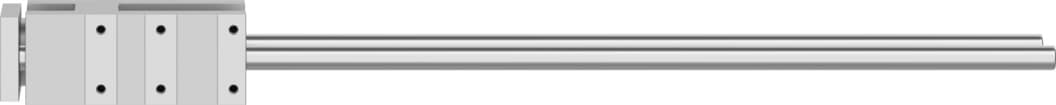

- 1The Festo FENG-40-500-KF guide unit features a recirculating ball bearing guide, ensuring high accuracy and durability in various industrial applications.
- 2With a stroke length of 500 mm, this guide unit offers extended movement capabilities, making it suitable for applications requiring significant travel.
- 3Constructed from tempered steel for the guide component and anodized wrought aluminum alloy for the housing, this unit provides robustness and resistance to wear.
- 4The guide unit can be mounted in any position, offering flexibility in installation and integration with other components.
- 5The FENG-40-500-KF is designed to meet VDMA24364-B2-L standards, ensuring conformity and reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Stroke | 500mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1000N | Max. force Fy static | 1260N |
Max. force Fz | 1000N | Max. force Fz static | 1260N |
Max. torque Mx | 44Nm | Max. static moment Mx | 55Nm |
Max. torque My | 52Nm | Max. static moment My | 65Nm |
Max. torque Mz | 52Nm | Max. static moment Mz | 65Nm |
Displacement force | 15N | Product weight | 3970g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34505 |
Specifications may be subject to change without notice
