Product Model
feng-40-50-kf
Selling Points

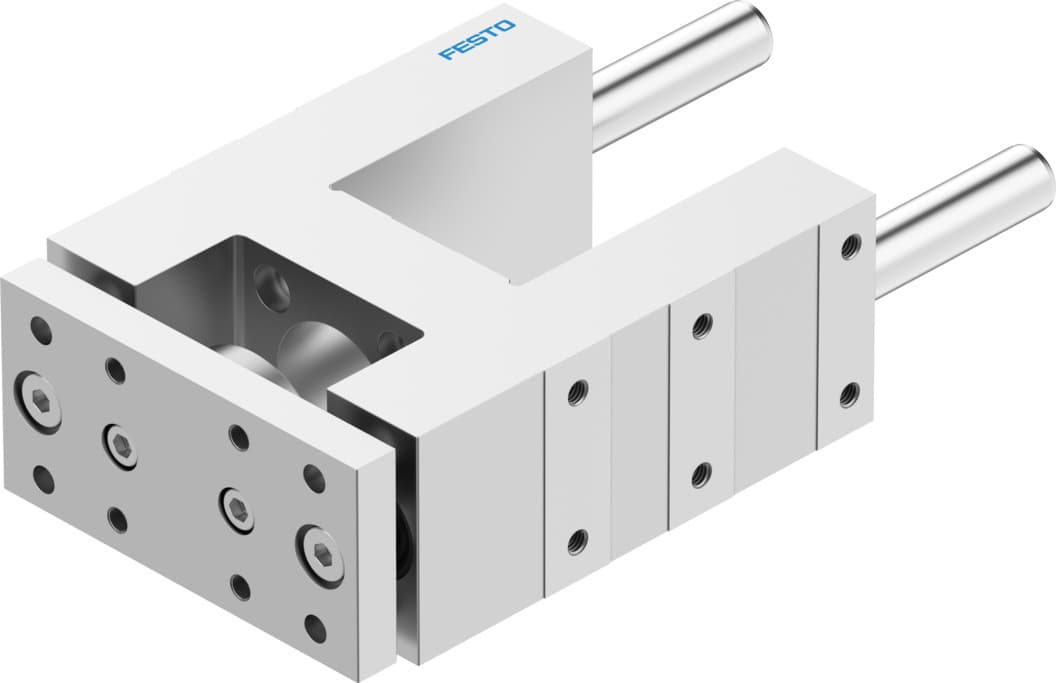

- 1The FENG-40-50-KF guide unit from Festo is designed with a recirculating ball bearing guide, providing smooth and precise movement in standards-based cylinders.
- 2This guide unit offers high maximum forces of 1000 N in both Fy and Fz directions, ensuring reliable performance under heavy loads.
- 3Constructed from robust materials, including anodized wrought aluminum alloy for the housing and tempered steel for the guide component, ensuring long-lasting durability.
- 4The FENG-40-50-KF operates within an ambient temperature range of -20°C to 80°C, making it suitable for a wide range of industrial applications.
- 5With a stroke length of 50 mm, this guide unit is versatile and can be easily integrated into various pneumatic systems, enhancing overall system efficiency and accuracy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Stroke | 50mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1000N | Max. force Fy static | 1260N |
Max. force Fz | 1000N | Max. force Fz static | 1260N |
Max. torque Mx | 44Nm | Max. static moment Mx | 55Nm |
Max. torque My | 52Nm | Max. static moment My | 65Nm |
Max. torque Mz | 52Nm | Max. static moment Mz | 65Nm |
Displacement force | 15N | Product weight | 2530g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34499 |
Specifications may be subject to change without notice
