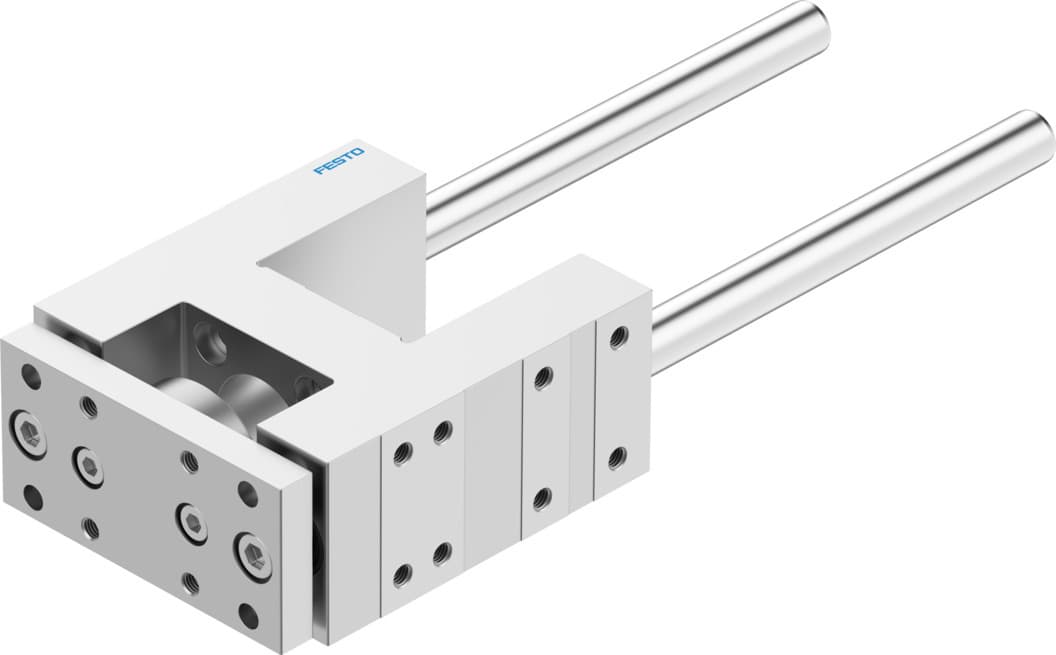

FENG-50-160-KF Recirculating Ball Bearing Guide by Festo

Selling Points

1The FENG-50-160-KF guide unit offers precise linear motion with a stroke of 160 mm, ensuring accurate positioning in various industrial applications.
2Built with a recirculating ball bearing guide, this unit provides reliable performance under high forces, with a maximum force of 1260 N in both Fy and Fz directions.
3The guide unit features optional mounting positions, allowing for flexible integration into different systems and configurations.
4Constructed from anodized wrought aluminum alloy for the housing and tempered steel for the guide component, ensuring durability and resistance to corrosion.
5Operates within a temperature range of -20°C to 80°C, making it suitable for various industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	50	Stroke	160mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	1260N	Max. force Fy static	1600N
Max. force Fz	1260N	Max. force Fz static	1600N
Max. torque Mx	65Nm	Max. static moment Mx	83Nm
Max. torque My	70Nm	Max. static moment My	89Nm
Max. torque Mz	70Nm	Max. static moment Mz	89Nm
Displacement force	15N	Product weight	4814g
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	34508

Specifications may be subject to change without notice
