Product Model
feng-50-500-kf
Selling Points

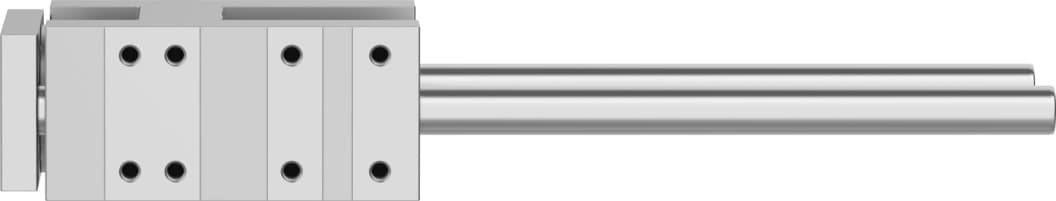

- 1The Festo FENG-50-500-KF guide unit offers a 500mm stroke, providing ample movement for various applications. Its optional mounting position ensures flexibility in installation.
- 2Equipped with a recirculating ball bearing guide, this unit ensures smooth and precise movement, reducing wear and tear on the system.
- 3Designed for high-performance applications, the FENG-50-500-KF supports maximum forces of 1260N and 1600N static, making it suitable for demanding tasks.
- 4Constructed from RoHS-compliant materials, including tempered steel for the guide component and anodized aluminum alloy for the housing and yoke plate, this unit meets stringent environmental standards.
- 5With a product weight of 6480g and a displacement force of 15N, the Festo FENG-50-500-KF is both robust and efficient, ensuring reliable performance in a variety of settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 50 | Stroke | 500mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1260N | Max. force Fy static | 1600N |
Max. force Fz | 1260N | Max. force Fz static | 1600N |
Max. torque Mx | 65Nm | Max. static moment Mx | 83Nm |
Max. torque My | 70Nm | Max. static moment My | 89Nm |
Max. torque Mz | 70Nm | Max. static moment Mz | 89Nm |
Displacement force | 15N | Product weight | 6480g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34512 |
Specifications may be subject to change without notice
