Product Model
feng-50-50-kf
Selling Points

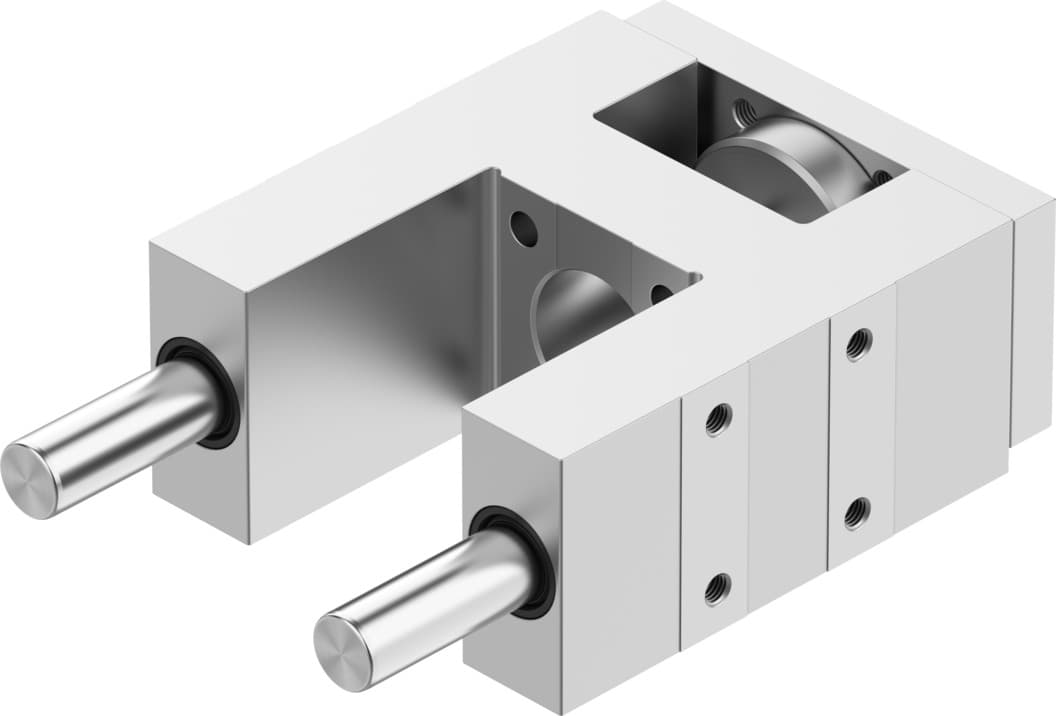

- 1The Festo FENG-50-50-KF guide unit ensures precise linear motion with its recirculating ball bearing guide, minimizing wear and tear.
- 2Built with anodized wrought aluminum alloy housing and tempered steel guide components, this guide unit offers robust durability.
- 3Operates effectively within a temperature range of -20°C to 80°C, making it suitable for various industrial environments.
- 4Capable of withstanding maximum forces of 1260 N in both Fy and Fz directions, ensuring reliable performance under load.
- 5Available with optional mounting positions, allowing for flexible integration into different pneumatic cylinder systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 50 | Stroke | 50mm |
Mounting position | Any | Guide | Recirculating ball bearing guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Max. force Fy | 1260N | Max. force Fy static | 1600N |
Max. force Fz | 1260N | Max. force Fz static | 1600N |
Max. torque Mx | 65Nm | Max. static moment Mx | 83Nm |
Max. torque My | 70Nm | Max. static moment My | 89Nm |
Max. torque Mz | 70Nm | Max. static moment Mz | 89Nm |
Displacement force | 15N | Product weight | 4275g |
Type of mounting | With internal thread | Note on materials | RoHS-compliant |
Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34506 |
Specifications may be subject to change without notice
