Product Model
gr-3/4
Selling Points

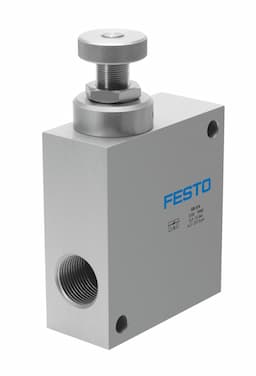

- 1The Festo GR-3/4 one-way flow control valve ensures precise pneumatic control with a maximum flow rate of 3300 liters per minute, making it suitable for various industrial applications.
- 2Equipped with a knurled screw adjustment, this valve allows for easy and precise adjustments to meet specific flow requirements.
- 3The GR-3/4 valve features pneumatic connections at ports 1G3/4 and 2G3/4, providing reliable and efficient control in your system.
- 4With a maximum operating pressure of 15 bar, this valve is designed to handle high-pressure applications while maintaining its performance.
- 5The Festo GR-3/4 is a reliable and durable option, weighing 0.938 kg and offering a robust construction suitable for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | G3/4 |
Pneumatic connection 2 | G3/4 | Adjusting element | Knurled screw |
Type of mounting | Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 3300l/min |
Standard nominal flow rate in non-return direction | 4800l/min | Operating pressure | 0.3bar 15bar |
Ambient temperature | -10°C 60°C | Housing material | Wrought aluminum alloy |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Product weight | 938g |
Note on materials | RoHS-compliant | Manufacturer ID | 2103 |
Specifications may be subject to change without notice
