Product Model

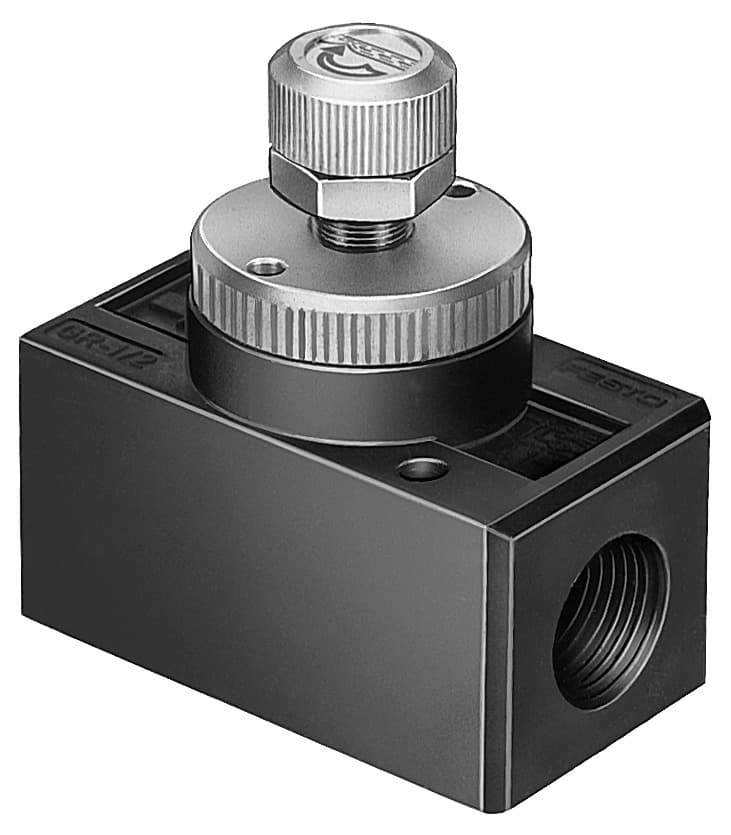

gr-3/8-b
Selling Points
- 1Precise Air Flow Management: The GR-3/8-B valve ensures accurate control of compressed air flow.
- 2ATEX Certified: Compliant with ATEX zones 1, 2, 21, and 22 for safe operation in hazardous environments.
- 3Robust Construction: Built with die-cast zinc housing for durability and resistance to extreme temperatures (-20 °C to 75 °C).
- 4Easy Adjustment: Features a knurled screw adjustment for effortless operation.
- 5RoHS Compliant: Meets RoHS standards, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | Internal thread G3/8 |
Pneumatic connection 2 | Internal thread G3/8 | Adjusting element | Knurled screw |
Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 1010l/min |
Standard nominal flow rate in non-return direction | 1150l/min | Operating pressure | 1.45psi 145psi |
Ambient temperature | -20°C 75°C | Housing material | Die-cast zinc |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -20°C 75°C | Product weight | 225g |
Note on materials | RoHS-compliant | Material of adjusting screw | Brass |
Manufacturer ID | 6308 |
Specifications may be subject to change without notice
