Product Model

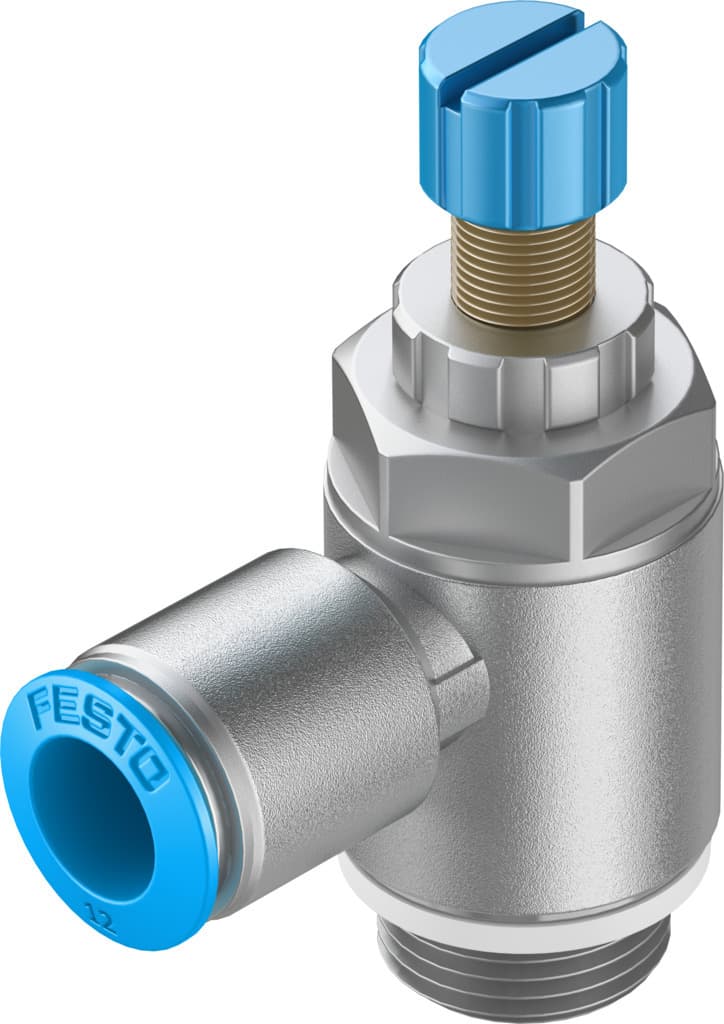

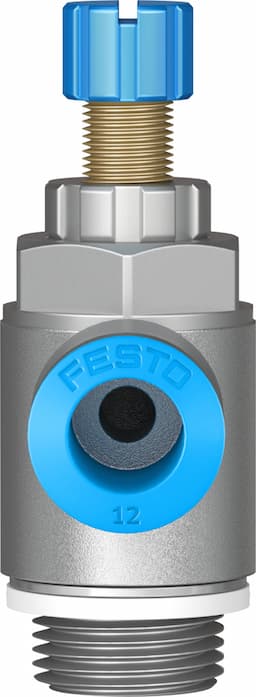

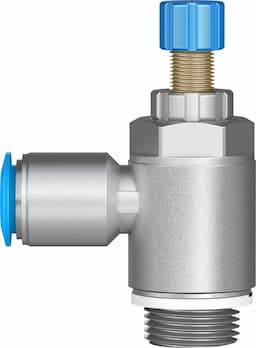

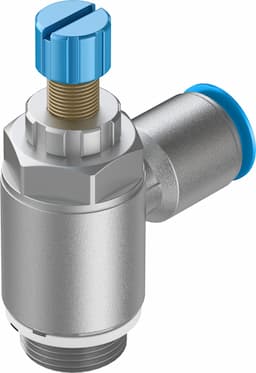

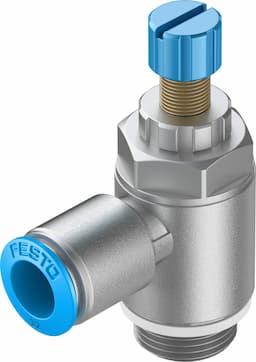

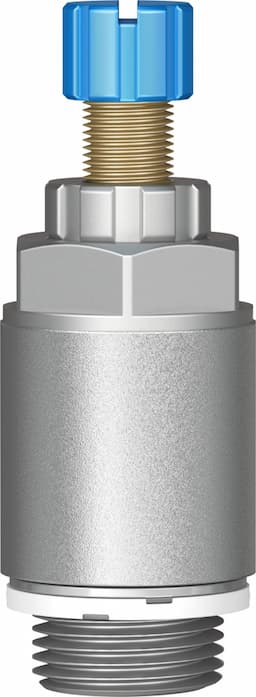

grla-1/2-qs-12-rs-d
Selling Points
- 1The GRLA-1/2-QS-12-RS-D one-way flow control valve ensures precise control of airflow in pneumatic systems, enhancing the efficiency of your industrial automation processes.
- 2This valve offers a range of pneumatic connections, including M5, G 1/8, G 1/4, G 3/8, G 1/2, and G 3/4, making it adaptable to various system configurations.
- 3Constructed with NBR seals and brass components, the GRLA-1/2-QS-12-RS-D valve ensures durability and reliability in demanding industrial environments.
- 4The valve allows for adjustable flow rates, enabling you to customize the airflow according to your specific application requirements, ensuring optimal performance and efficiency.
- 5With a screw-in mounting type and slotted head screw adjustment component, the GRLA-1/2-QS-12-RS-D valve is easy to install and maintain, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-12 |
Pneumatic connection 2 | G1/2 | Adjusting element | Knurled screw |
Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 1580l/min |
Standard nominal flow rate in non-return direction | 925l/min 1605l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 2220l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 1910l/min 2500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 15Nm |
Product weight | 124g | Note on materials | RoHS-compliant |
Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
Manufacturer ID | 534344 |
Specifications may be subject to change without notice
