Product Model

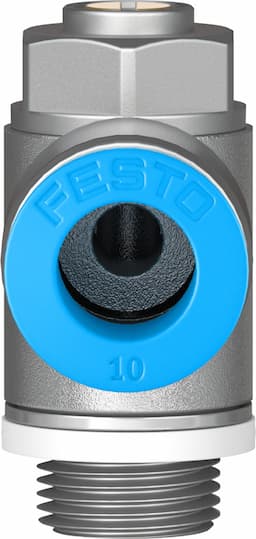

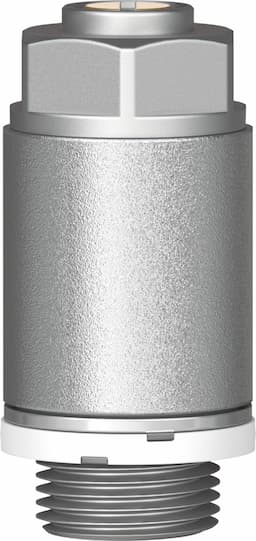

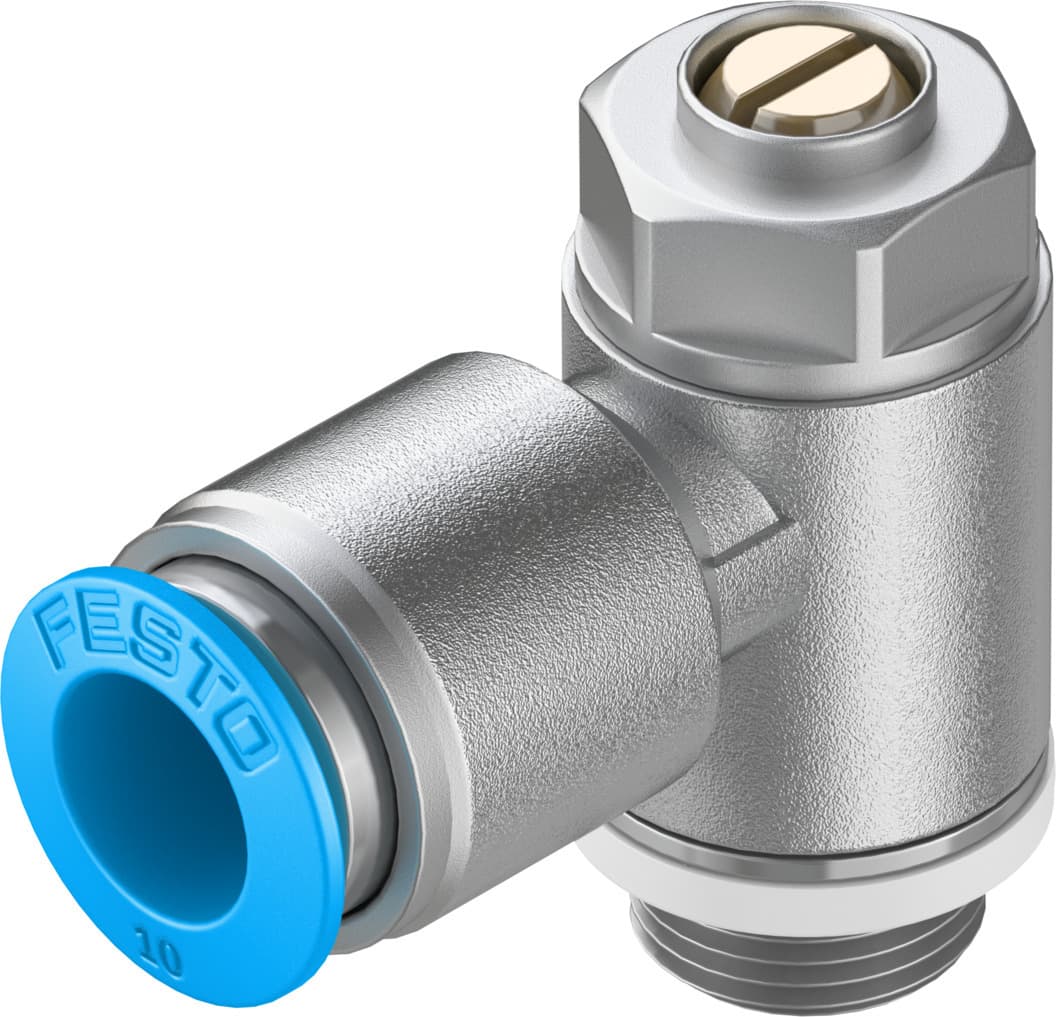

grla-1/4-qs-10-d
Selling Points
- 1The Festo GRLA-1/4-QS-10-D one-way flow control valve is designed to provide precise control in pneumatic systems, ensuring reliable operation and efficient flow management.
- 2This valve features a compact design with plastic tubing, plug socket, and push-in L-fitting and T-connector connections, making it easy to integrate into various pneumatic setups.
- 3The GRLA-1/4-QS-10-D is engineered for durability and long service life, making it a reliable choice for demanding applications in industrial automation.
- 4Festo's commitment to quality and customer support ensures that you have access to comprehensive documentation, training, and after-sales services to maximize the performance of your GRLA-1/4-QS-10-D valve.
- 5With Festo's extensive product range and global availability, you can easily find the right components and services to support your automation needs, enhancing your overall efficiency and productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | G? | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 480l/min |
Standard nominal flow rate in non-return direction | 345l/min 500l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 760l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 630l/min 790l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 5Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 42g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193148 |
Specifications may be subject to change without notice
