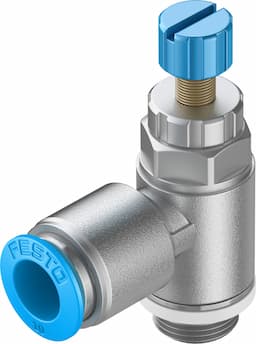

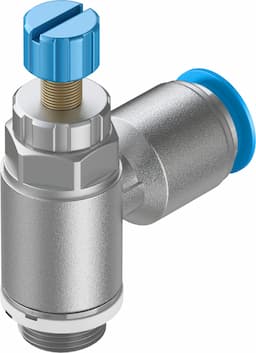

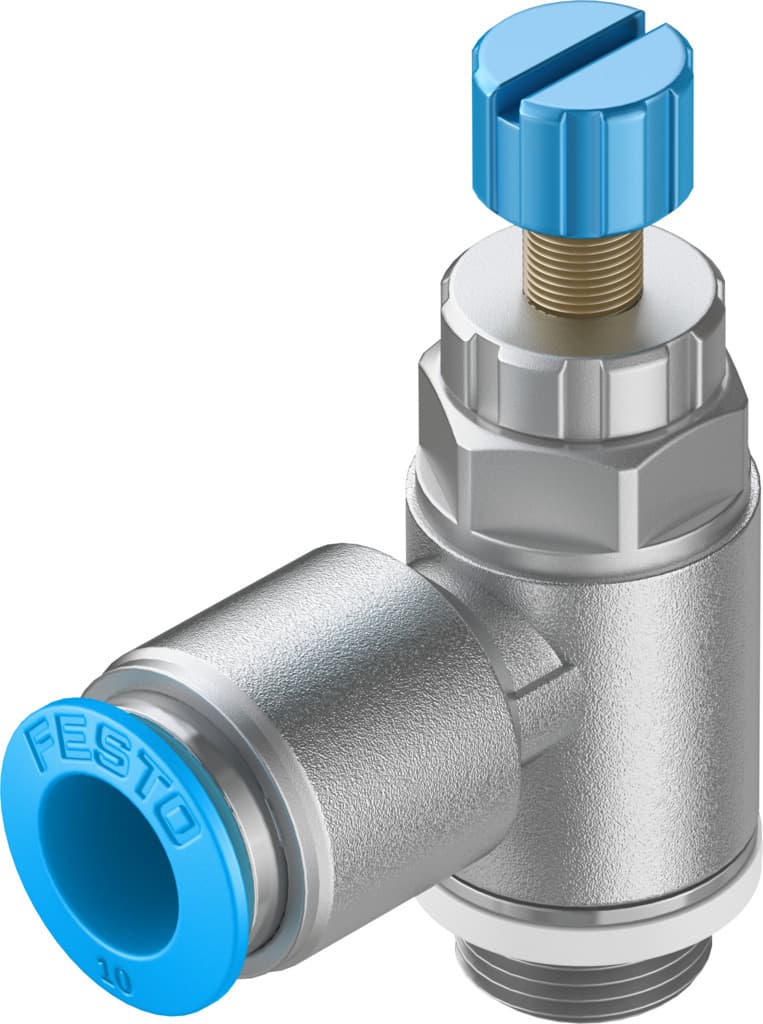

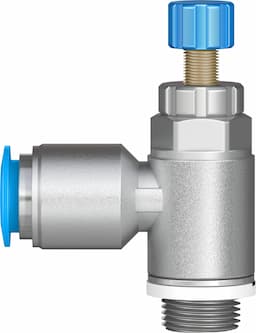

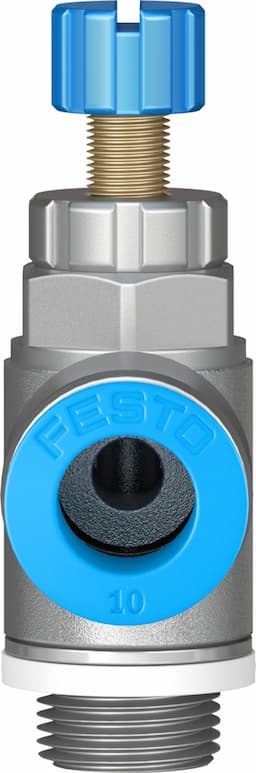

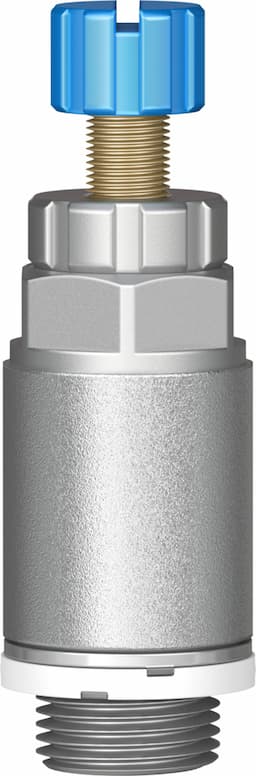

Product Model
grla-1/4-qs-10-rs-d
Selling Points
- 1The Festo GRLA-1/4-QS-10-RS-D one-way flow control valve ensures precise control of pneumatic systems, minimizing energy waste and maximizing efficiency.
- 2This valve is ideal for various industrial applications, including exhaust air management, pneumatic circuits, and automation systems, offering a reliable solution for diverse needs.
- 3Made from durable metal, the GRLA-1/4-QS-10-RS-D valve is built to withstand harsh industrial environments, ensuring long-lasting performance and reliability.
- 4Featuring push-in fittings and a slotted head screw for adjustment, this valve is easy to install and maintain, reducing downtime and increasing productivity.
- 5With its piloted non-return function, the GRLA-1/4-QS-10-RS-D valve provides precise control over airflow, ensuring that your pneumatic system operates smoothly and efficiently.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | G? | Adjusting element | Knurled screw |
Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 480l/min |
Standard nominal flow rate in non-return direction | 345l/min 500l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 760l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 630l/min 790l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 5Nm |
Product weight | 50g | Note on materials | RoHS-compliant |
Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
Manufacturer ID | 534340 |
Specifications may be subject to change without notice
