Product Model

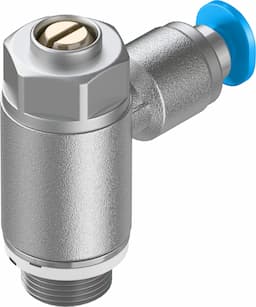

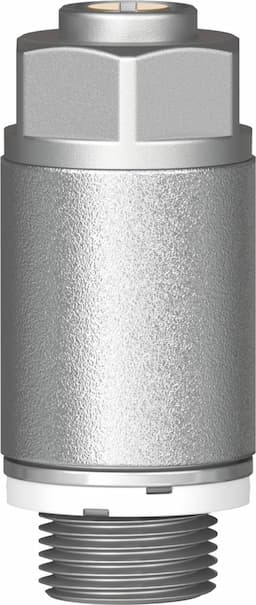

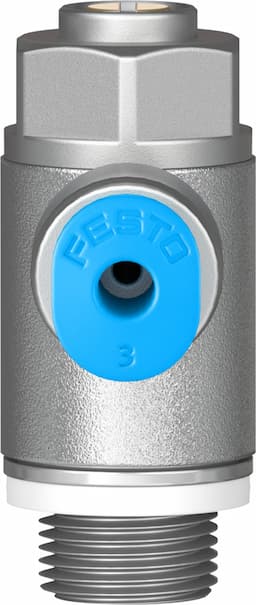

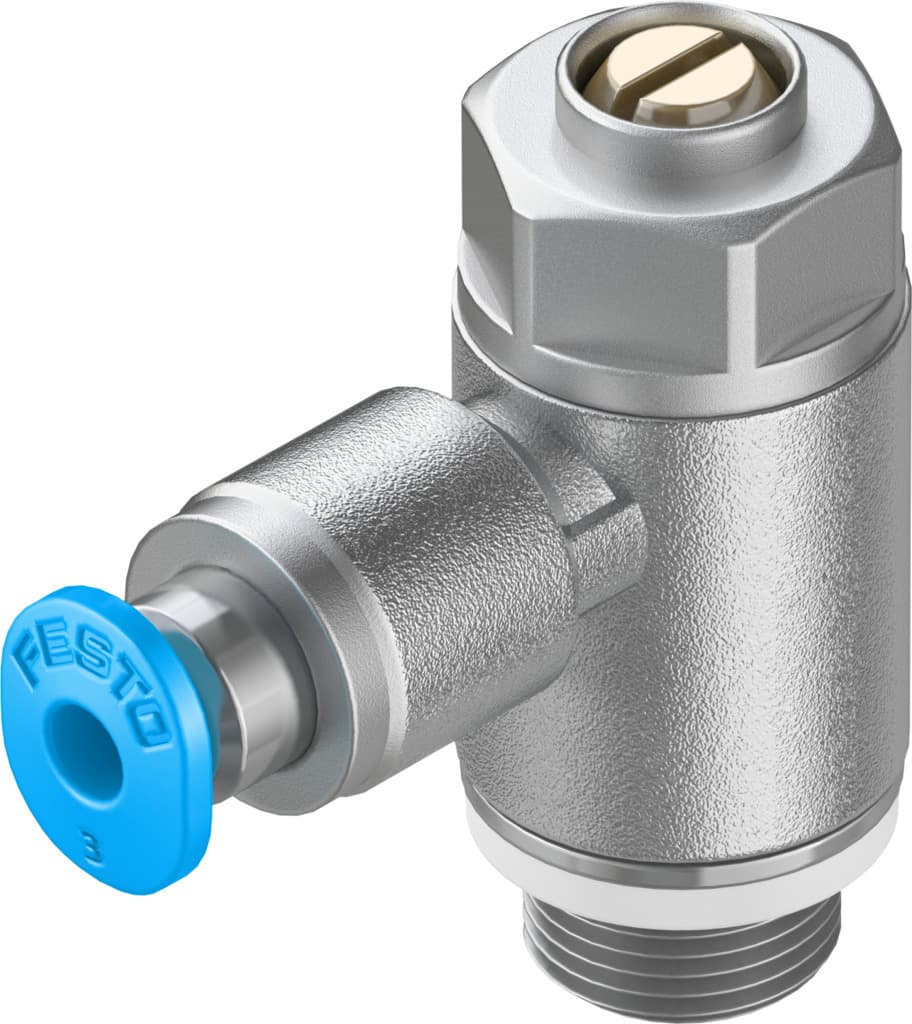

grla-1/8-qs-3-d
Selling Points
- 1The Festo GRLA-1/8-QS-3-D one-way flow control valve ensures efficient pneumatic flow control, perfect for applications requiring precise air management.
- 2This valve features a screw-in mounting type, making it easy to integrate into various pneumatic systems without complex installation procedures.
- 3With a standard nominal flow rate of 215 L/min in the flow control direction, this valve provides reliable performance in a wide range of industrial settings.
- 4The valve operates with compressed air as per ISO 8573-1:2010 [7:4:4], ensuring compatibility with standard industrial air supply systems.
- 5Constructed from high-quality materials including brass screws and die-cast zinc swivel fittings, this valve offers durability and long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 130l/min |
Standard nominal flow rate in non-return direction | 100l/min 130l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 180l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 200l/min 220l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193142 |
Specifications may be subject to change without notice
