Product Model

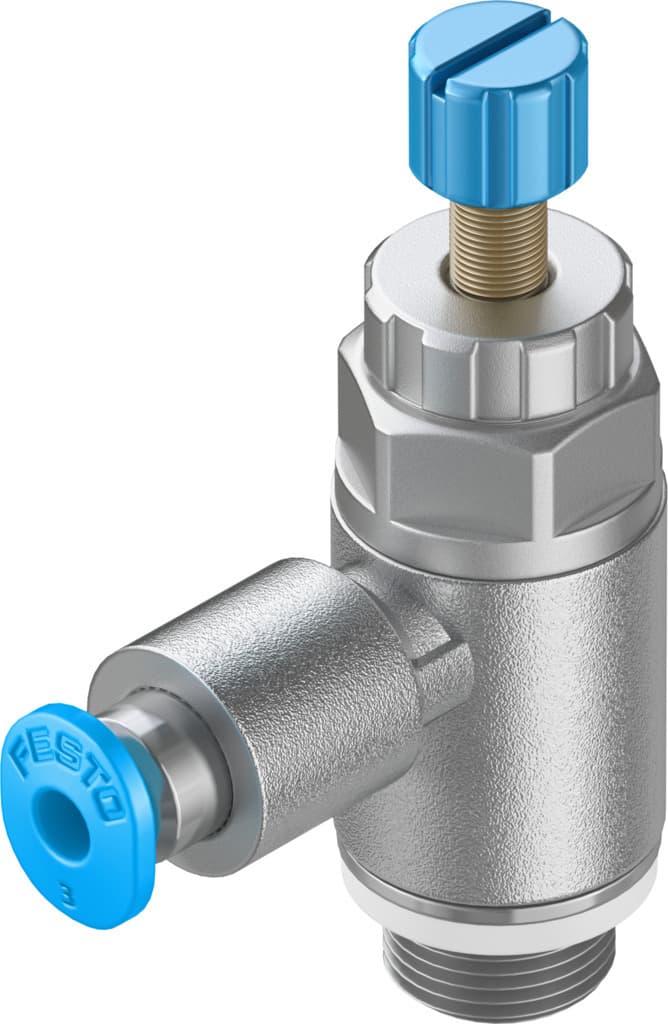

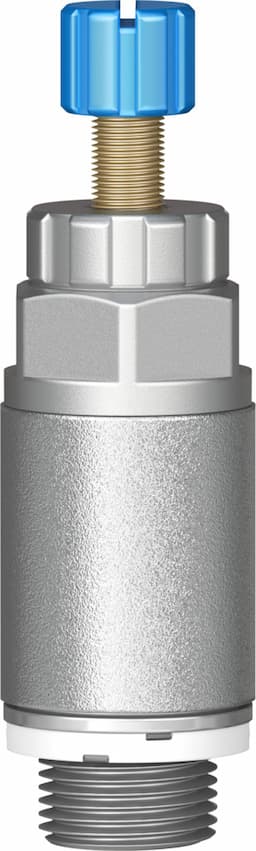

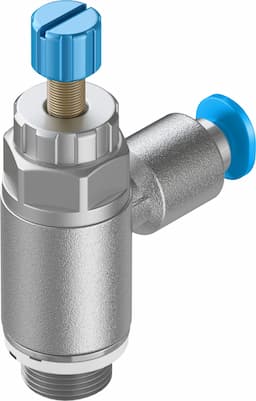

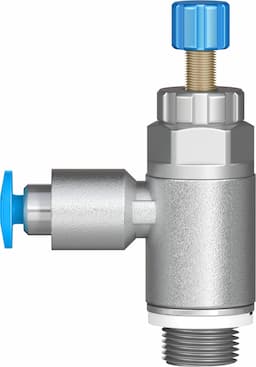

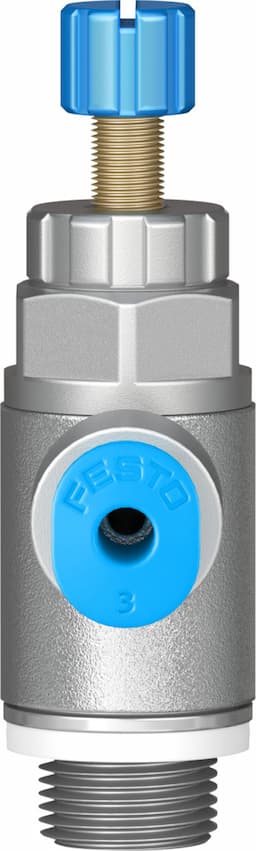

grla-1/8-qs-3-rs-d
Selling Points
- 1The Festo GRLA-1/8-QS-3-RS-D one-way flow control valve is engineered for precise control in pneumatic systems, ensuring reliable operation and minimal leakage.
- 2This valve features a knurled screw adjusting element for easy and precise adjustments, making it ideal for various industrial automation applications.
- 3With its RoHS-compliant materials and durable construction, the GRLA-1/8-QS-3-RS-D valve meets high standards of quality and sustainability.
- 4The valve's compact design and standardized connections (1QS-3 and G1/8) facilitate easy integration into existing systems, enhancing overall efficiency.
- 5Festo's commitment to quality and innovation ensures that the GRLA-1/8-QS-3-RS-D valve delivers consistent performance and reliability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | G1/8 | Adjusting element | Knurled screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 130l/min |
Standard nominal flow rate in non-return direction | 100l/min 130l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 180l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 200l/min 220l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Nominal tightening torque | 3Nm | Product weight | 23g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 197579 |
Specifications may be subject to change without notice
