Product Model

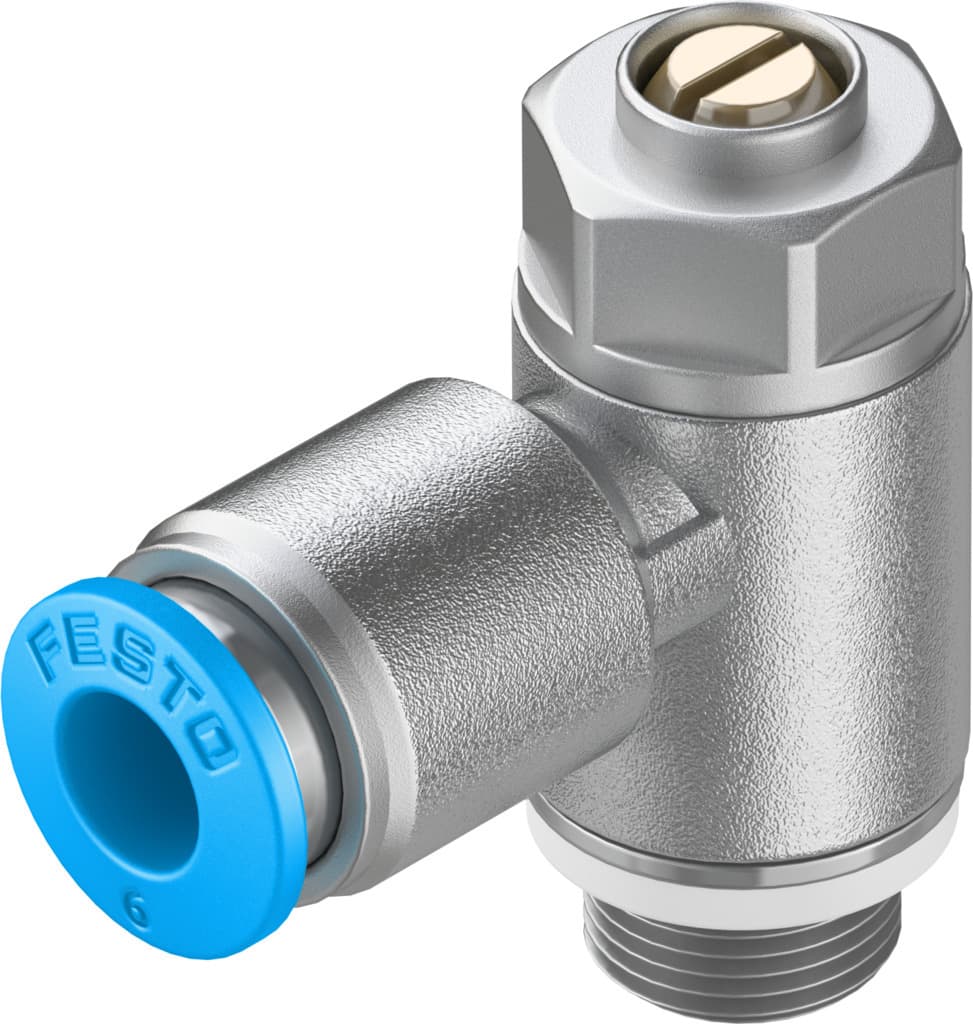

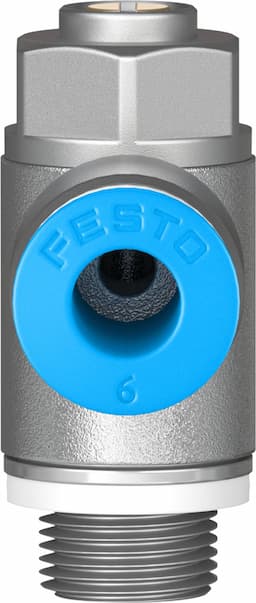

grla-1/8-qs-6-d
Selling Points
- 1The Festo GRLA-1/8-QS-6-D is designed to control exhaust air flow effectively, ensuring optimal system performance.
- 2With a G1/8 x 6 mm Ø flow control, this valve is compact and easy to integrate into various pneumatic systems.
- 3The slotted head screw adjustment allows for precise control over the flow rate, from 0.2 to 10 bar working pressure.
- 4Made from metal, the valve is built to withstand a wide temperature range (-10°C to +60 °C) and ensure long-lasting performance.
- 5Featuring a recessed slotted head screw adjustment, installation is straightforward, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 185l/min |
Standard nominal flow rate in non-return direction | 160l/min 240l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 370l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 330l/min 390l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193144 |
Specifications may be subject to change without notice
