Product Model

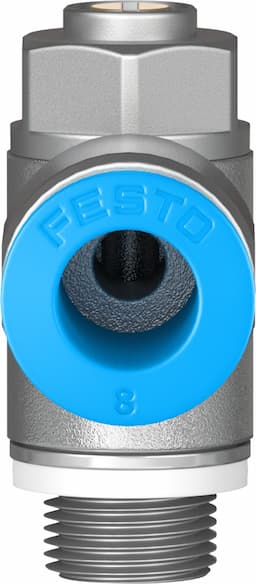

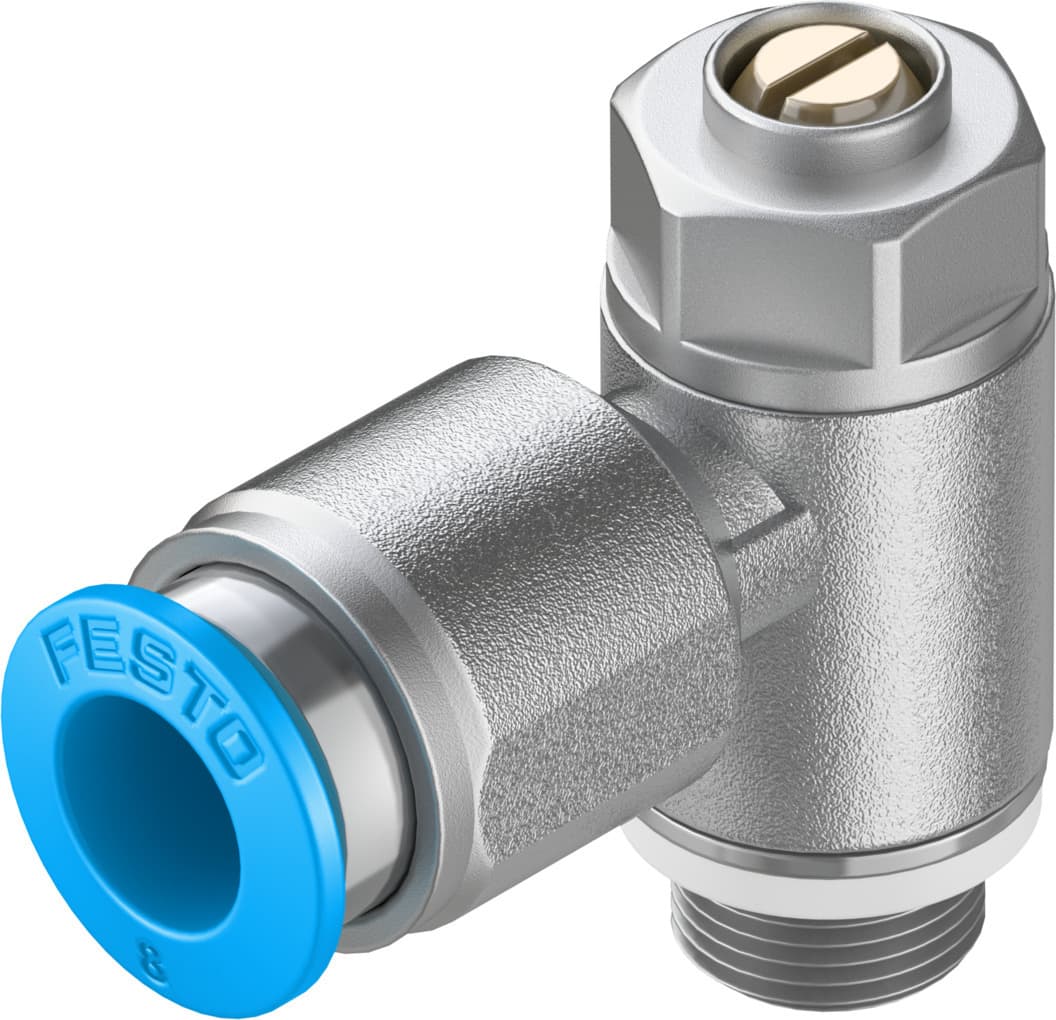

grla-1/8-qs-8-d
Selling Points
- 1The Festo GRLA-1/8-QS-8-D one-way flow control valve features a slotted head screw adjustment component, allowing for precise control over air flow rates.
- 2This valve is designed with a screw-in type of mounting, providing easy installation and versatility in various industrial settings.
- 3With a standard nominal flow rate of 215L2 in the flow control direction and 175L2 in the blocked direction, this valve ensures efficient air flow management.
- 4The GRLA-1/8-QS-8-D operates within a wide temperature range, from -10GC to 60GC, making it suitable for various industrial environments.
- 5Constructed from high-quality materials, including wrought aluminum alloy and NBR material seals, this valve ensures durability and reliability in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-8 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 215l/min |
Standard nominal flow rate in non-return direction | 175l/min 250l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 400l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 330l/min 410l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193145 |
Specifications may be subject to change without notice
