Product Model

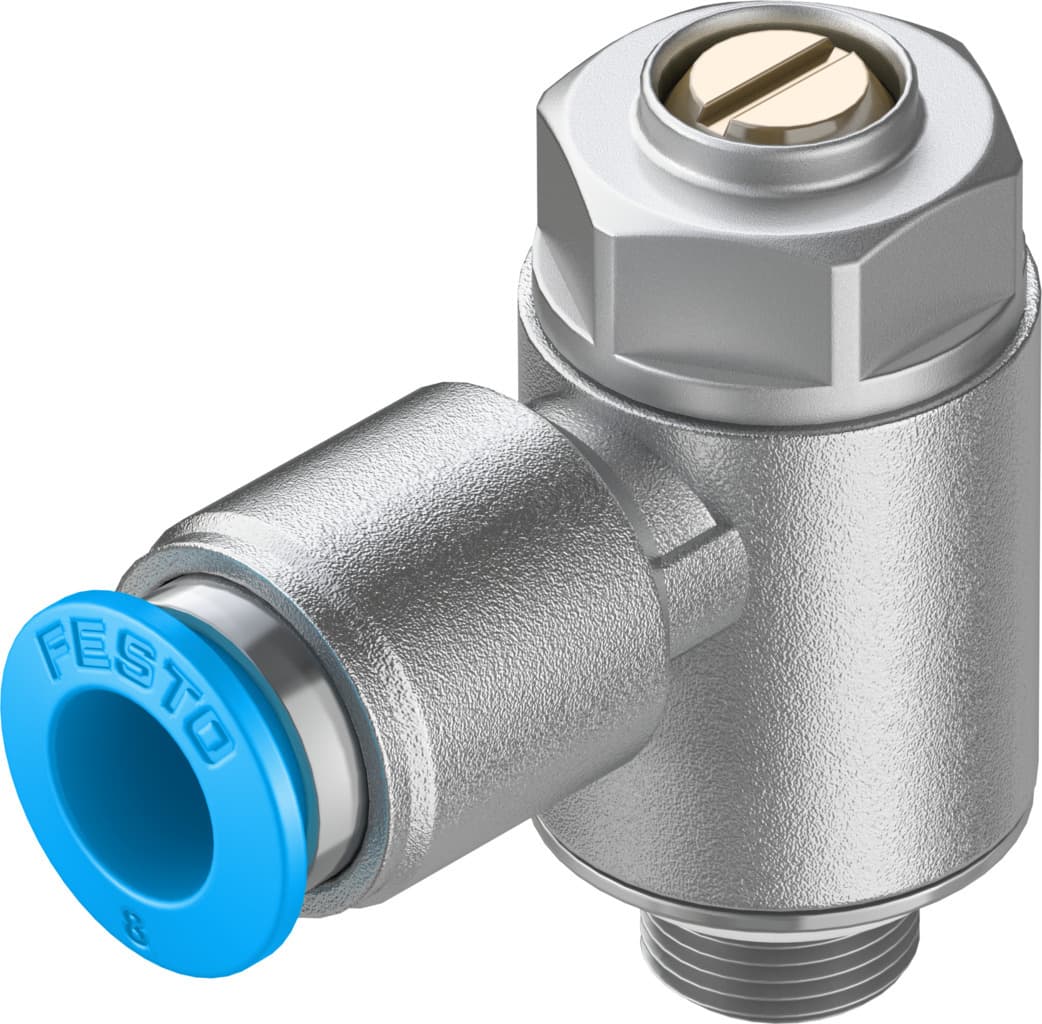

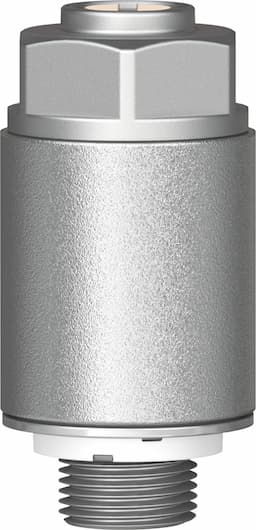

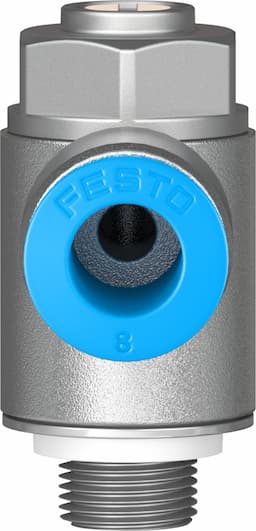

grla-1/8-qs-8-mf-d
Selling Points
- 1The Festo GRLA-1/8-QS-8-MF-D one-way flow control valve ensures precise and reliable pneumatic control, ideal for various industrial applications.
- 2Constructed with brass screws, wrought aluminum alloy hollow bolts, and die-cast zinc swivel joints, this valve offers durability and resistance to corrosion.
- 3Featuring a screw-in mounting type, the GRLA-1/8-QS-8-MF-D is easy to install, reducing setup time and increasing operational efficiency.
- 4Designed to operate with compressed air as per ISO 8573-1:2010 [7:4:4], this valve ensures compatibility with standard industrial air systems.
- 5With a nominal width of 3 mm, the GRLA-1/8-QS-8-MF-D is designed for compact installations, making it suitable for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-8 |
Pneumatic connection 2 | G1/8 | Type of mounting | Screw-in With external thread |
Standard nominal flow rate in flow control direction | 475l/min | Standard nominal flow rate in non-return direction | 325l/min 500l/min |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 720l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 610l/min 760l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 32g |
Note on materials | RoHS-compliant | Seals material | NBR |
Hollow bolt material | Wrought aluminum alloy Anodized | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
Manufacturer ID | 537076 |
Specifications may be subject to change without notice
