Product Model

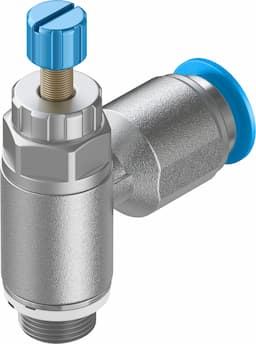

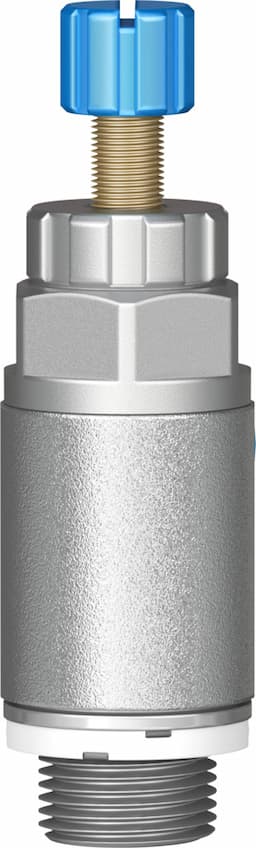

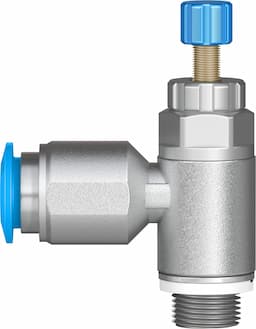

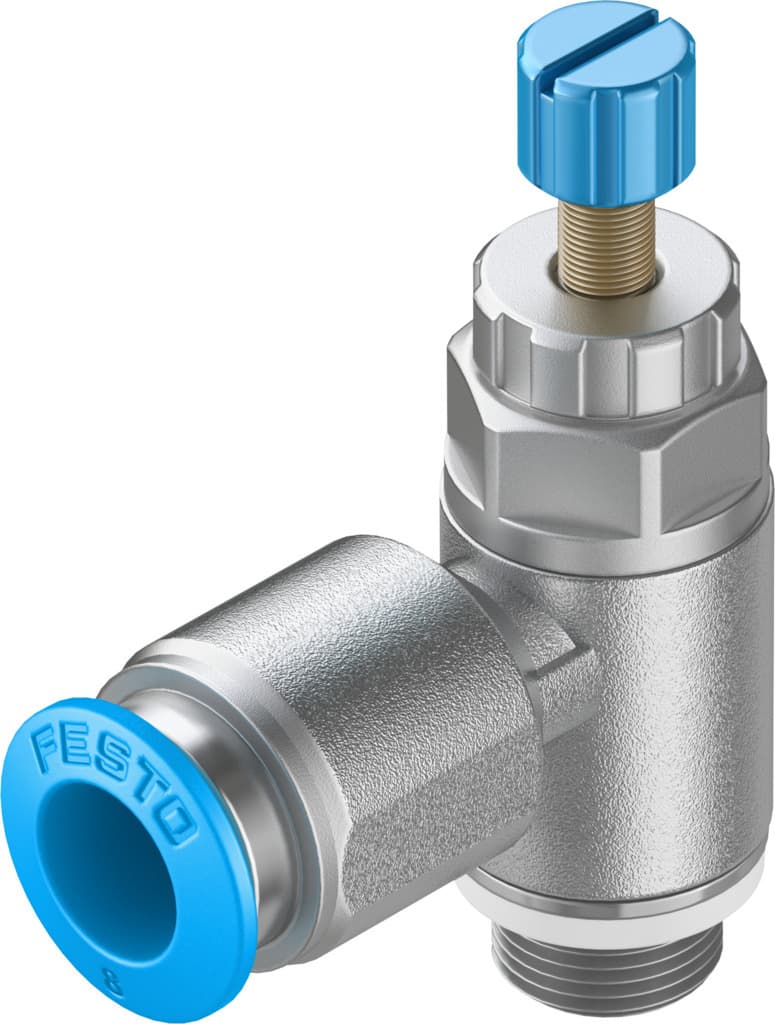

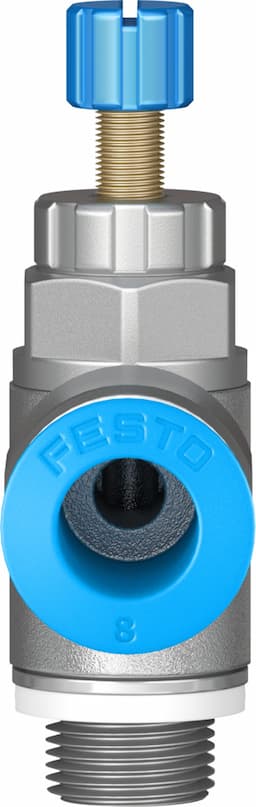

grla-1/8-qs-8-rs-d
Selling Points
- 1The Festo GRLA-1/8-QS-8-RS-D is a reliable one-way flow control valve designed to manage pneumatic systems efficiently, ensuring smooth operation and minimal backflow.
- 2This valve features a 1QS-8 pneumatic connection and a G1/8 connection, making it versatile for various pneumatic applications and easy to integrate into existing systems.
- 3The valve includes an adjusting element with a knurled screw, allowing for precise control over the flow rate to meet specific application requirements.
- 4Constructed from high-quality materials such as PBT, aluminum alloy, and brass, this valve ensures durability and long-lasting performance in demanding environments.
- 5With its compact design and standardized dimensions, the Festo GRLA-1/8-QS-8-RS-D is easy to install and integrate into your pneumatic setup, minimizing downtime and hassle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-8 |
Pneumatic connection 2 | G1/8 | Adjusting element | Knurled screw |
Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 215l/min |
Standard nominal flow rate in non-return direction | 175l/min 250l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 400l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 330l/min 410l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Product weight | 24g | Note on materials | RoHS-compliant |
Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
Manufacturer ID | 534337 |
Specifications may be subject to change without notice
