Product Model

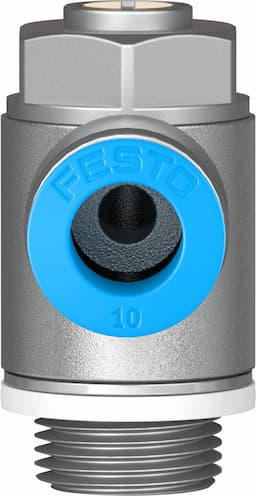

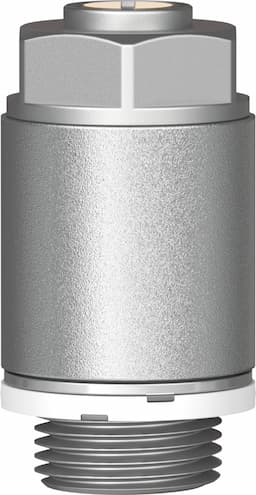

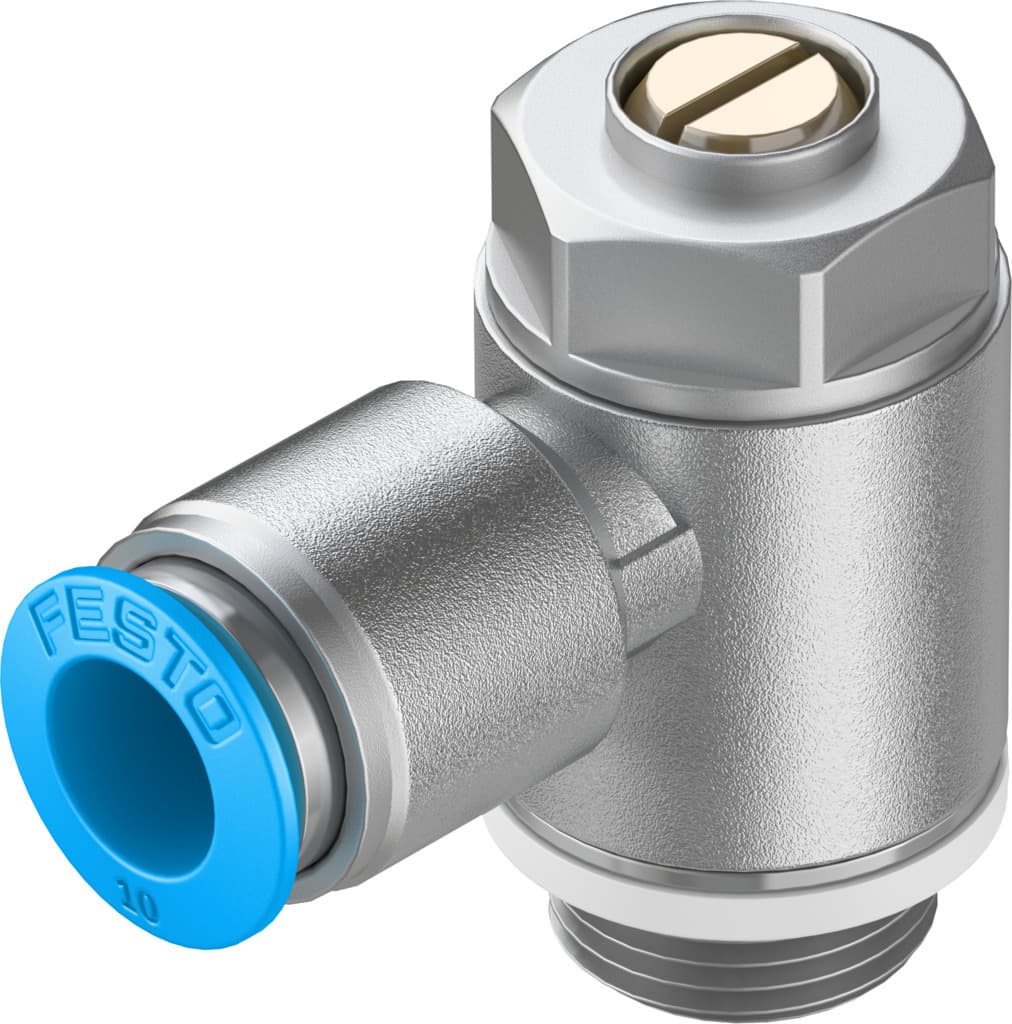

grla-3/8-qs-10-d
Selling Points
- 1The GRLA-3/8-QS-10-D one-way flow control valve is engineered to manage air flow efficiently, ensuring optimal performance in various industrial applications.
- 2Equipped with a piloted non-return function, this valve provides precise control over airflow, preventing backflow and maintaining system integrity.
- 3Featuring pneumatic connections (QS-10) and a slotted head screw for easy adjustment, the GRLA-3/8-QS-10-D is versatile and easy to integrate into different systems.
- 4Made from high-quality materials like wrought aluminum alloy and brass, this valve is built to withstand various operating conditions and temperatures.
- 5The GRLA-3/8-QS-10-D meets international standards (ISO 8573-1:2010) and is compliant with RoHS regulations, ensuring it meets stringent quality and safety requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | G3/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 900l/min |
Standard nominal flow rate in non-return direction | 540l/min 975l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 1400l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 1160l/min 1620l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 10Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 60g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193151 |
Specifications may be subject to change without notice
