Product Model

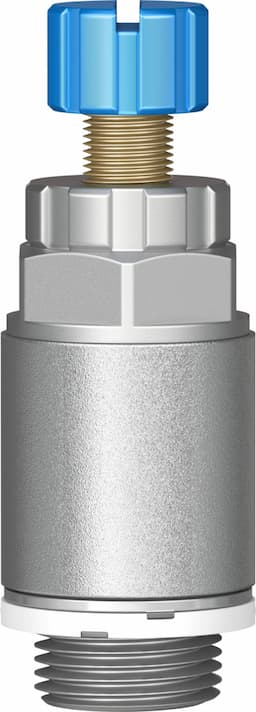

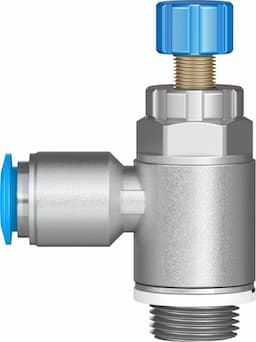

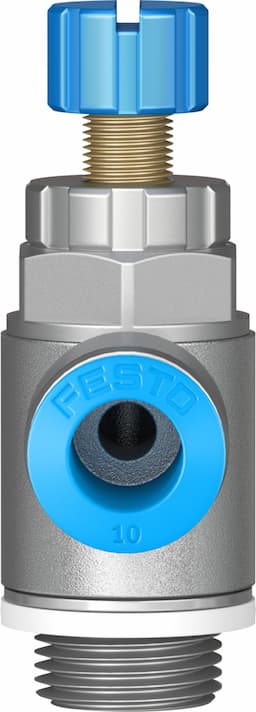

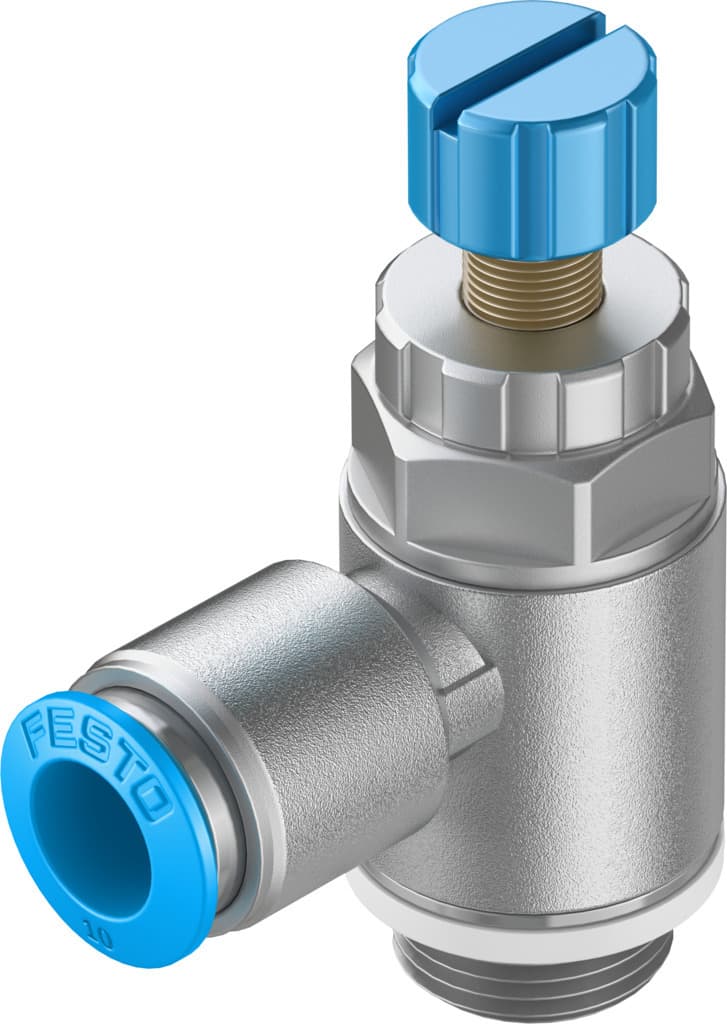

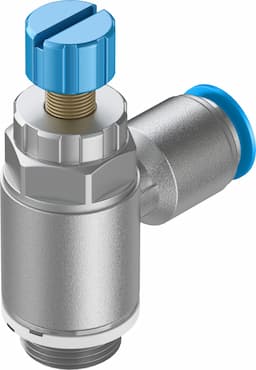

grla-3/8-qs-10-rs-d
Selling Points
- 1The Festo GRLA-3/8-QS-10-RS-D one-way flow control valve ensures precise and reliable pneumatic control, ideal for various industrial applications.
- 2With a standard nominal flow rate of 900 l/min in the flow control direction and 540-975 l/min in the non-return direction, this valve optimizes air flow for your processes.
- 3Made from high-quality materials like NBR, wrought aluminum alloy, and POM, this valve is durable and resistant to corrosion, ensuring long-lasting performance.
- 4The knurled screw adjusting element allows for simple and precise adjustment of the valve, making it easy to integrate into your automation systems.
- 5The threaded with external (male) thread mounting type provides flexibility in installation, allowing for easy integration into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-10 |
Pneumatic connection 2 | G3/8 | Adjusting element | Knurled screw |
Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 900l/min |
Standard nominal flow rate in non-return direction | 540l/min 975l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 1400l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 1160l/min 1620l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 10Nm |
Product weight | 72g | Note on materials | RoHS-compliant |
Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
Manufacturer ID | 534343 |
Specifications may be subject to change without notice
