Product Model

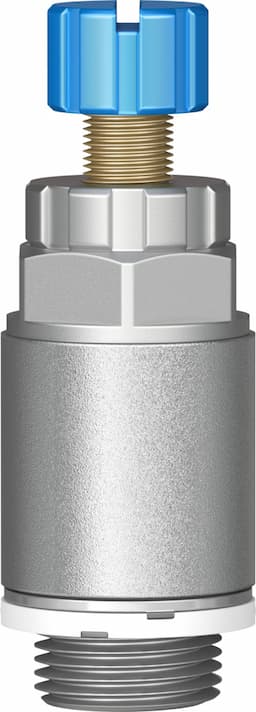

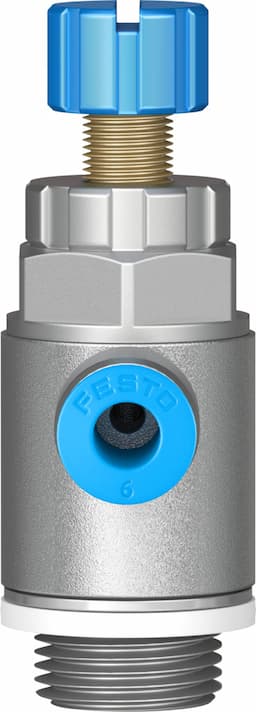

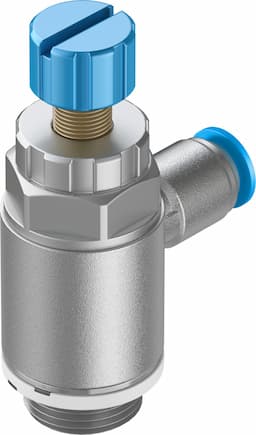

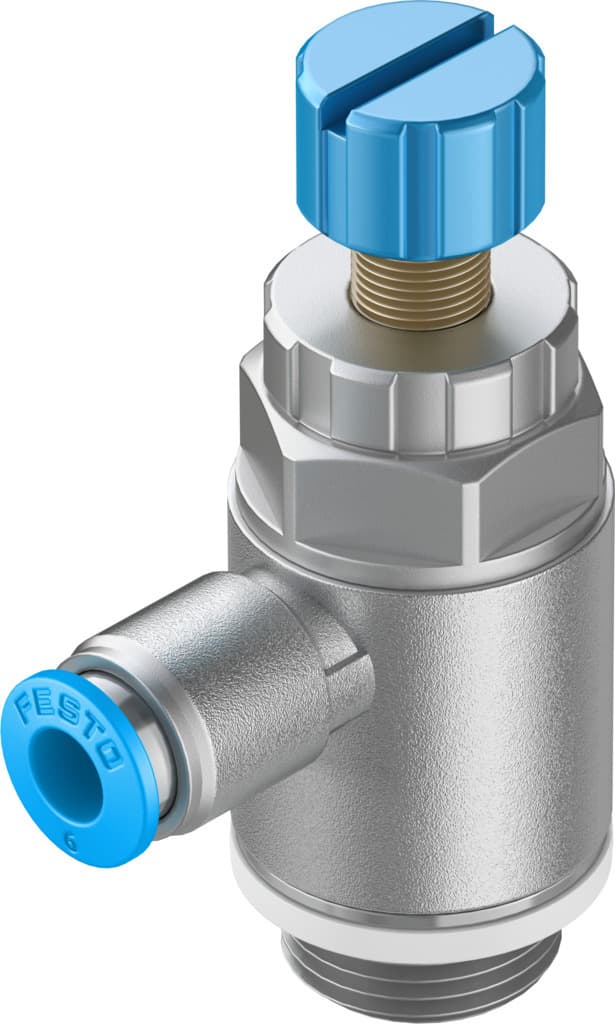

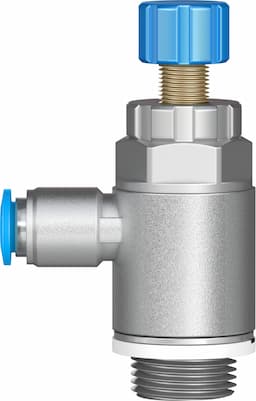

grla-3/8-qs-6-rs-d
Selling Points
- 1The Festo GRLA-3/8-QS-6-RS-D one-way flow control valve is engineered for precise pneumatic control, ensuring reliable operation in various industrial applications.
- 2This valve features a piloted non-return function, allowing for efficient flow control and minimizing backflow, which is crucial for maintaining system integrity.
- 3The valve includes a proximity sensor and push-in T-connector, making it easy to integrate into complex automation systems with minimal setup time.
- 4The GRLA-3/8-QS-6-RS-D is part of Festo's extensive range of pneumatic valves, offering standardized dimensions and mounting interfaces for seamless integration.
- 5With its adjustable elements like the knurled screw, this valve provides customizable settings to meet specific application requirements, enhancing its versatility and effectiveness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | G3/8 | Adjusting element | Knurled screw |
Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 495l/min |
Standard nominal flow rate in non-return direction | 320l/min 495l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 740l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 840l/min 890l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 10Nm |
Product weight | 72g | Note on materials | RoHS-compliant |
Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
Manufacturer ID | 534341 |
Specifications may be subject to change without notice
