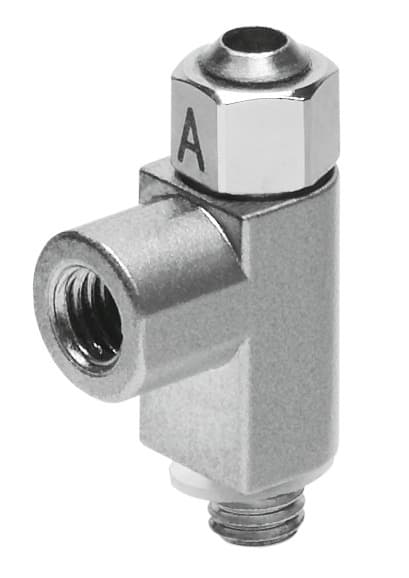

Product Model
grla-m3
Selling Points
- 1The Festo GRLA-M3-QS-3 valve offers a standard nominal flow rate of 41L/min in the flow control direction, ensuring accurate pneumatic system management.
- 2Equipped with a QS-3 push-in connector for port 1 and an M3 threaded connection for port 2, this valve provides flexibility in various pneumatic setups.
- 3Built with brass adjusting screws, NBR seals, and a die-cast zinc swivel connection, the valve ensures durability and reliability in demanding environments.
- 4Compatible with compressed air within the temperature range of -10°C to +60°C and operating pressures from 0.2 to 10 bar, making it suitable for diverse applications.
- 5Compliant with ISO 8573-1:2010 and RoHS standards, this valve meets stringent quality and safety requirements, ensuring it is safe for use in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | M3 |
Pneumatic connection 2 | M3 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 18l/min |
Standard nominal flow rate in non-return direction | 18l/min 20l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
Symbol | 00991452 | Standard flow rate in flow control direction 6 -> 0 bar | 33l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 33l/min 37l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Max. tightening torque | 0.3Nm | Product weight | 2g |
Material of screwed plug | Brass Nickel-plated | Note on materials | RoHS-compliant |
Seals material | NBR | Material of adjusting screw | Brass |
Swivel joint material | Die-cast zinc | Manufacturer ID | 175038 |
Specifications may be subject to change without notice
