Product Model

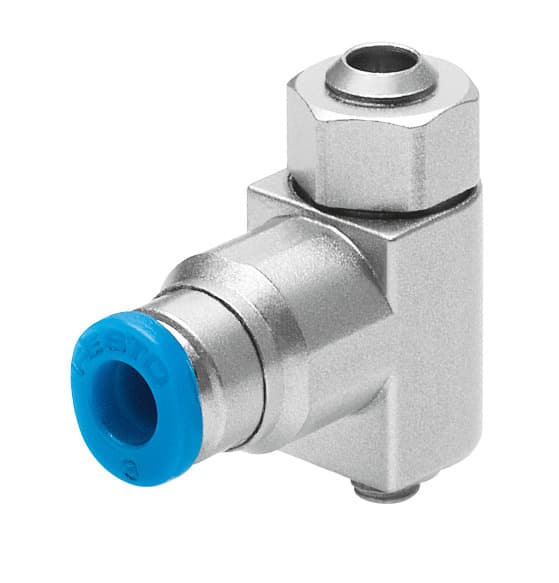

grla-m3-qs-3
Selling Points
- 1The GRLA-M3-QS-3 offers precise flow control for exhaust air, ensuring consistent performance in pneumatic systems.
- 2Built with durable brass components and nickel-plated brass threaded plugs, this valve is designed to withstand various operating pressures.
- 3The slotted head screw adjustment makes it simple to fine-tune the valve's performance, ensuring optimal airflow control.
- 4Equipped with a QS-3 push-in connector for port 1 and an M3 threaded connector for port 2, this valve is versatile and easy to integrate into various pneumatic setups.
- 5The GRLA-M3-QS-3 meets RoHS compliance and is certified for use in cleanroom environments (Class 4 according to ISO 14644-1), making it suitable for a wide range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | M3 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 41l/min |
Standard nominal flow rate in non-return direction | 27l/min 50l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Standard flow rate in flow control direction 6 -> 0 bar | 95l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 75l/min 110l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Max. tightening torque | 0.3Nm |
Product weight | 7g | Material of screwed plug | Brass Nickel-plated |
Note on materials | RoHS-compliant | Seals material | NBR |
Releasing ring material | POM | Material of adjusting screw | Brass |
Swivel joint material | Die-cast zinc | Manufacturer ID | 175041 |
Specifications may be subject to change without notice
