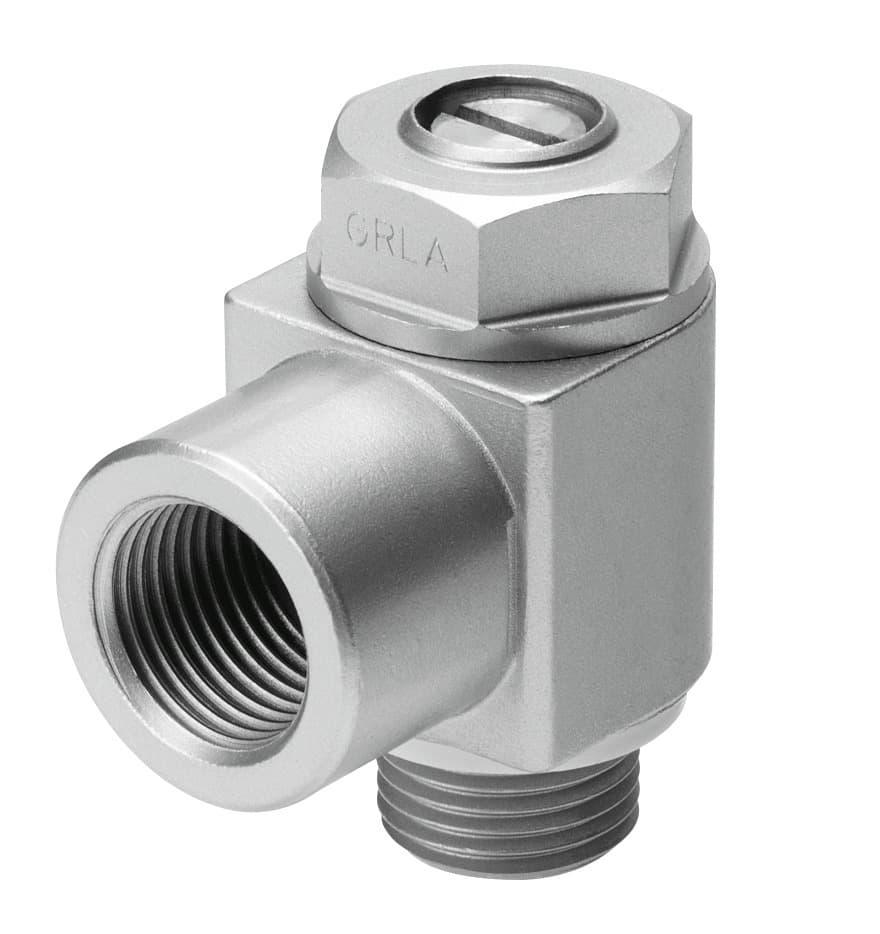

Product Model
grla-m5-b
Selling Points
- 1Regulates air flow with a standard nominal flow rate of 95 l/min in flow control direction.
- 2Suitable for use in ATEX zones 1, 2, 21, and 22 for safe operation in hazardous environments.
- 3Operates between -10 °C and 60 °C, ensuring reliability across various ambient conditions.
- 4Nickel-plated brass threaded plug and NBR seals ensure durability and resistance to wear.
- 5Simple screw-in mounting with knurled screw adjustment for quick setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 95l/min |
Standard nominal flow rate in non-return direction | 76l/min 95l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
Symbol | 00991452 | Standard flow rate in flow control direction 6 -> 0 bar | 169l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 135l/min 170l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Nominal width | 2mm | Max. tightening torque | 1.5Nm |
Product weight | 11g | Material of screwed plug | Nickel-plated |
Note on materials | RoHS-compliant | Seals material | NBR |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
Manufacturer ID | 151160 |
Specifications may be subject to change without notice
