Product Model

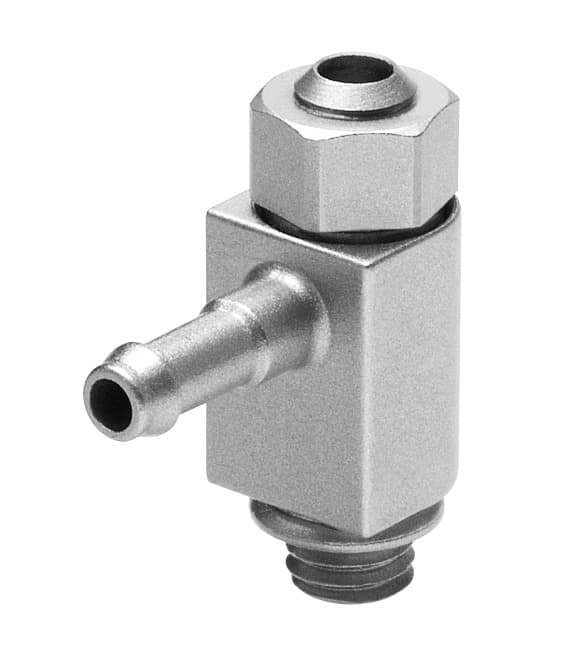

grla-m5-pk-4-b
Selling Points
- 1The Festo GRLA-M5-PK-4-B is a reliable one-way flow control valve designed for precise pneumatic control, ensuring optimal performance in various industrial applications.
- 2With a maximum operating pressure of 10 bar and a standard nominal flow rate of 140 l/min, this valve is ideal for managing compressed air effectively.
- 3The valve features a slotted head screw for easy adjustment and a threaded mounting type, making it easy to integrate into existing systems.
- 4Constructed from high-quality materials, including nickel-plated threaded plugs and brass adjusting screws, this valve ensures durability and long service life.
- 5The GRLA-M5-PK-4-B is part of Festo's comprehensive range of automation components, offering a single-source solution for all your pneumatic control needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | PK-4 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 83l/min |
Standard nominal flow rate in non-return direction | 76l/min 88l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
Symbol | 00991452 | Standard flow rate in flow control direction 6 -> 0 bar | 140l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 128l/min 148l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Nominal width | 2mm | Max. tightening torque | 1.5Nm |
Product weight | 10g | Material of screwed plug | Nickel-plated |
Note on materials | RoHS-compliant | Seals material | NBR |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
Manufacturer ID | 151162 |
Specifications may be subject to change without notice
