Product Model
grla-m5-qs-3-rs-d
Selling Points

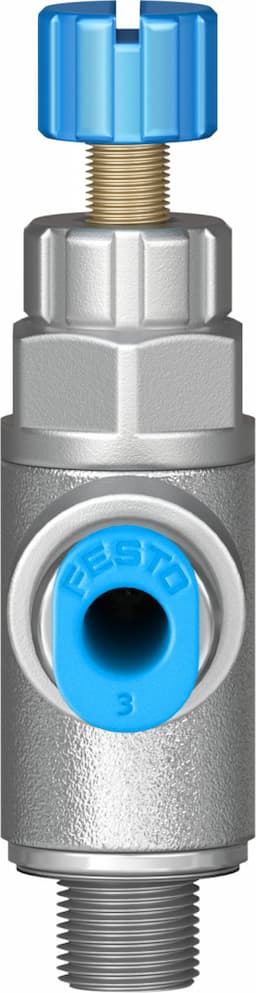

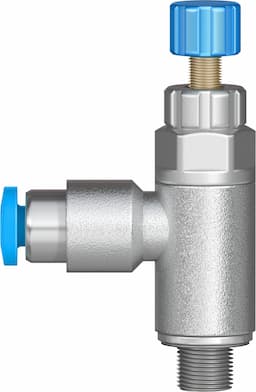

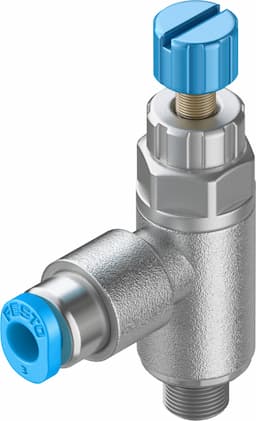

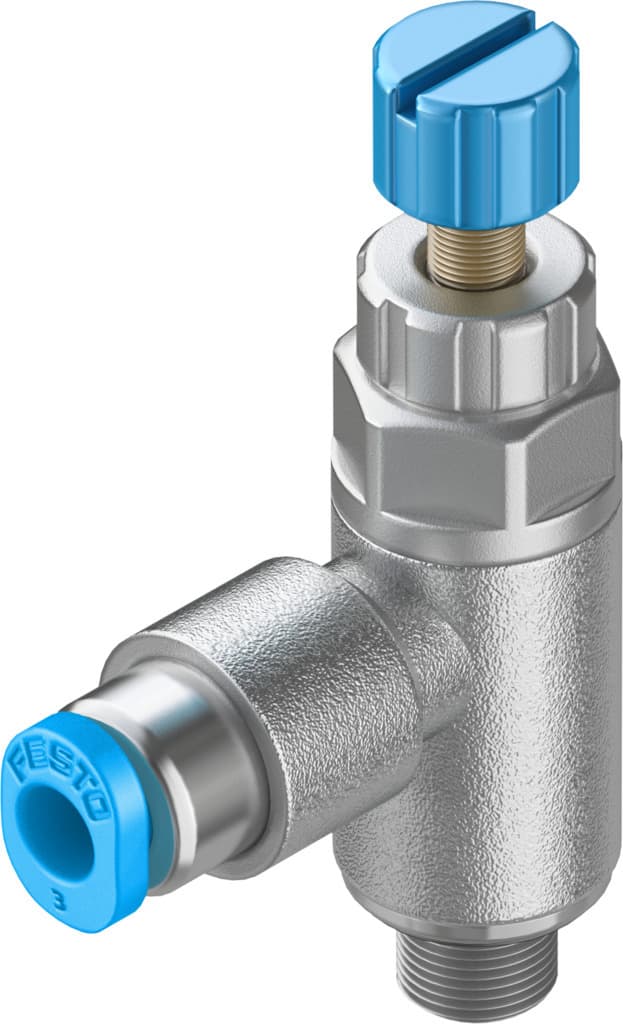

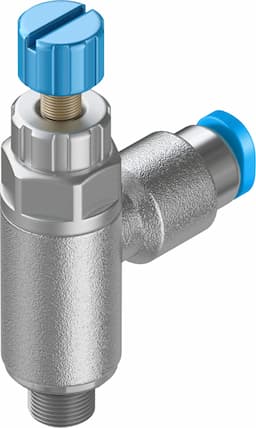

- 1The Festo GRLA-M5-QS-3-RS-D is a one-way exhaust air pneumatic flow control valve designed for precise control in various industrial applications. It features a knurled screw for easy adjustment and a non-return function to ensure reliable operation.
- 2This valve operates within a temperature range of -10°C to +60°C, making it suitable for a wide range of environments. It is compliant with ISO 8573-1:2010 standards for compressed air quality.
- 3The valve has a flow rate of 100 L/min in the direction of flow control and 60-100 L/min in the non-return direction at 6 bar operating pressure. It supports both M5 threaded and Q.S. 3 connectors for versatile connections.
- 4Constructed with high-quality materials, including brass adjusting screws, NBR seals, and anodized wrought aluminum alloy knurled heads, this valve ensures durability and reliability in demanding industrial settings.
- 5The Festo GRLA-M5-QS-3-RS-D is part of the GRLA series, known for its robust design and efficient performance. It is an excellent choice for applications requiring precise pneumatic flow control with minimal maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 100l/min |
Standard nominal flow rate in non-return direction | 60l/min 100l/min | Operating pressure | 0.2bar 10bar |
Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
Mounting position | Any | Symbol | 00991452 |
Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 145l/min |
Standard flow rate in non-return direction at 6 -> 0 bar | 150l/min 170l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Nominal tightening torque | 0.8Nm | Product weight | 14g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 197576 |
Specifications may be subject to change without notice
