Product Model

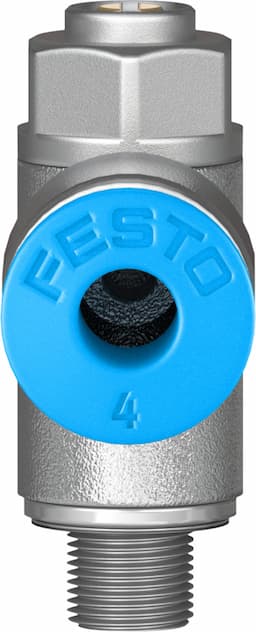

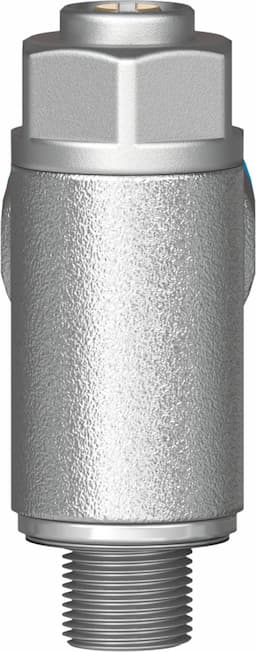

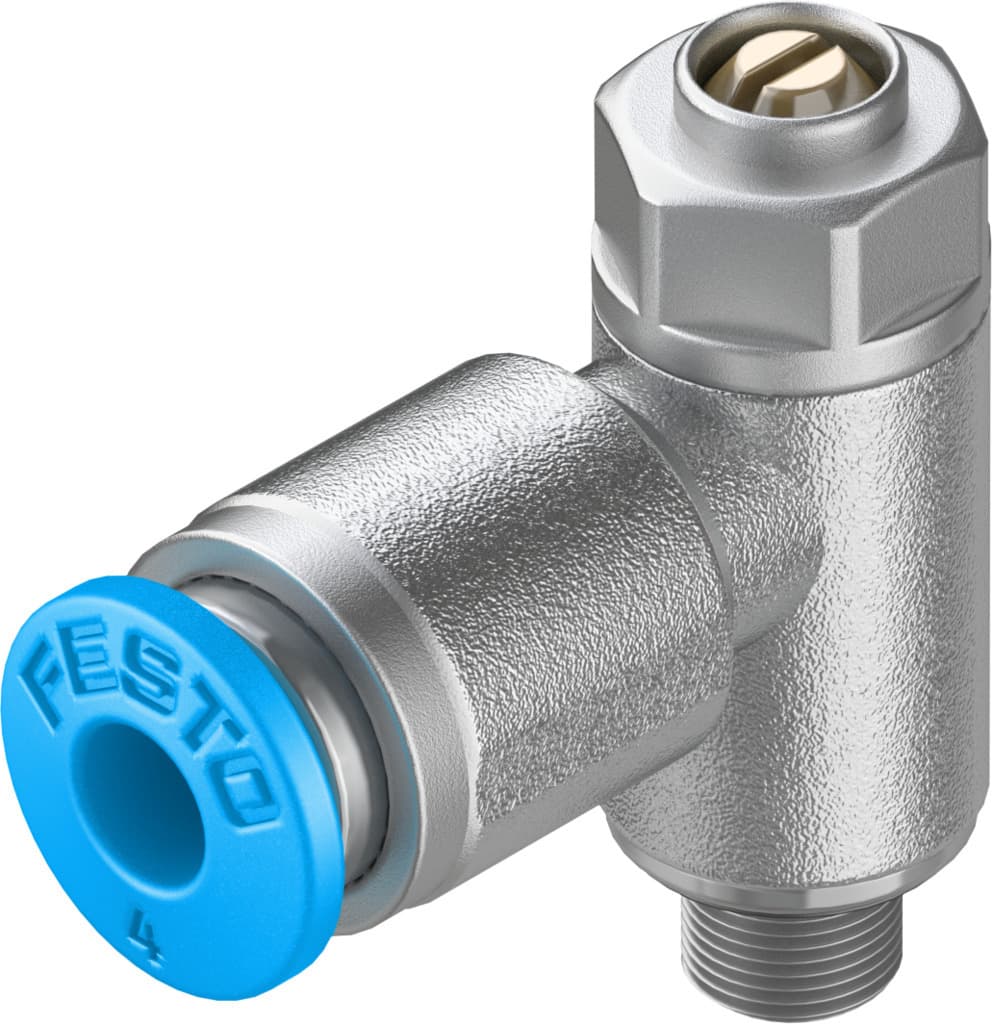

grla-m5-qs-4-d
Selling Points
- 1The GRLA-M5-QS-4-D valve ensures precise control over exhaust air flow, making it ideal for various industrial applications.
- 2With a 4 mm Ø tube connector and M5 male thread, this valve is designed for compact installations, saving space in your system.
- 3The recessed slotted head screw adjustment allows for easy adjustment of the flow rate, ensuring optimal performance in different conditions.
- 4Built with metal, this valve offers durability and reliability, ensuring long-lasting performance in harsh industrial environments.
- 5Suitable for a wide range of applications, including pneumatic systems, this valve is a versatile solution for maintaining efficient air flow control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-4 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 110l/min |
Standard nominal flow rate in non-return direction | 65l/min 110l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 165l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 140l/min 160l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193138 |
Specifications may be subject to change without notice
