Product Model
grla-m5-qs-6-d
Selling Points

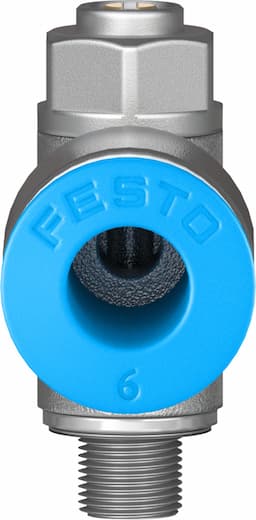

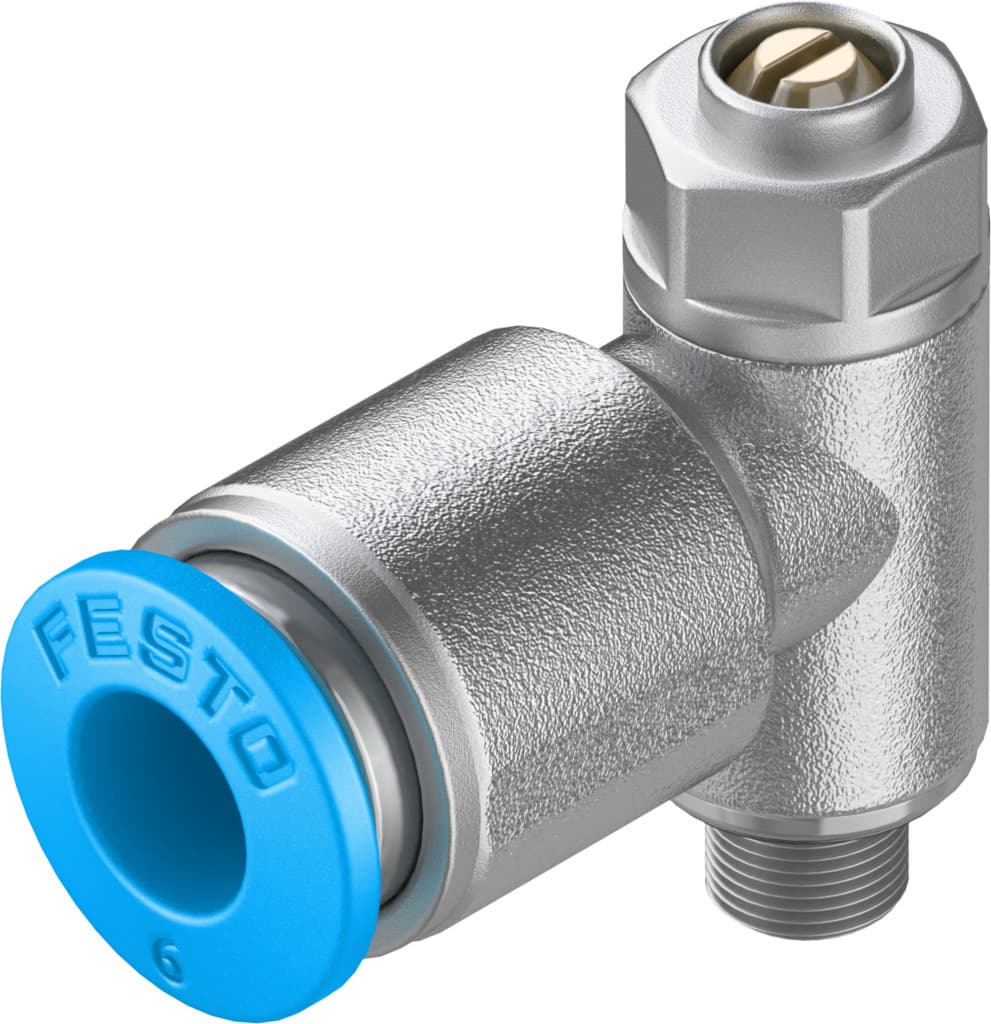

- 1The Festo GRLA-M5-QS-6-D is a one-way flow control valve designed for efficient exhaust air management, ensuring precise flow control and durability in compressed air systems.
- 2This valve features a slotted head screw adjustment for easy and precise settings, making it user-friendly and reliable.
- 3With a standard nominal flow rate of 115 l/min in the flow control direction and 70-110 l/min in the non-return direction, this valve optimizes air flow for various applications.
- 4The valve operates within a wide temperature range of -10°C to +60°C and supports operating pressures from 0.2 to 10 bar, making it versatile for different environments.
- 5Constructed with high-quality materials like brass and NBR seals, the GRLA-M5-QS-6-D ensures long-lasting performance and compliance with RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 115l/min |
Standard nominal flow rate in non-return direction | 70l/min 110l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 185l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 145l/min 170l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193139 |
Specifications may be subject to change without notice
