Product Model
grlo-m3
Selling Points

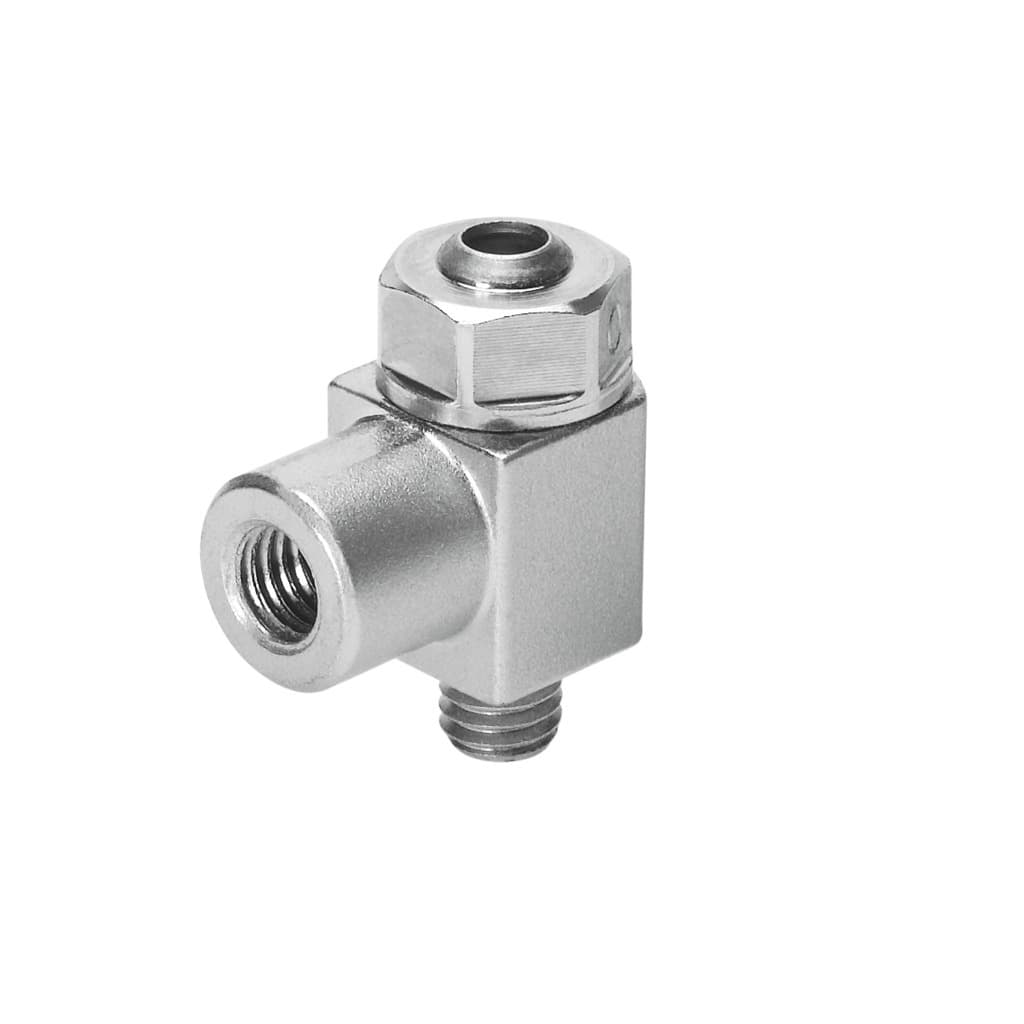

- 1The Festo GRLO-M3 is a precision throttle valve designed for reliable pneumatic control, featuring a standard nominal flow rate of 18 l/min and adjustable flow rates from 6 to 0 bar.
- 2This flow control valve is compatible with compressed air according to ISO 8573-1:2010 [7:4:4] and operates within an ambient temperature range of -10 °C to 60 °C.
- 3The GRLO-M3 is constructed with high-quality materials, including brass for the screwed plug and NBR seals, ensuring RoHS compliance and durability.
- 4The valve features a slotted head screw for easy adjustment and a threaded mounting type, allowing for versatile installation options.
- 5The GRLO-M3 is suitable for cleanroom applications, meeting Class 4 standards according to ISO 14644-1, making it ideal for precision environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control function | Pneumatic connection 1 | M3 |
Pneumatic connection 2 | M3 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 18l/min |
Operating pressure | 0bar 10bar | Ambient temperature | -10°C 60°C |
Mounting position | Any | Symbol | 00991454 |
Standard flow rate in flow control direction 6 -> 0 bar | 33l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Max. tightening torque | 0.3Nm | Product weight | 2g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Material of adjusting screw | Brass |
Swivel joint material | Die-cast zinc | Manufacturer ID | 175039 |
Specifications may be subject to change without notice
