Product Model
grlo-m5-qs-3-lf-c
Selling Points

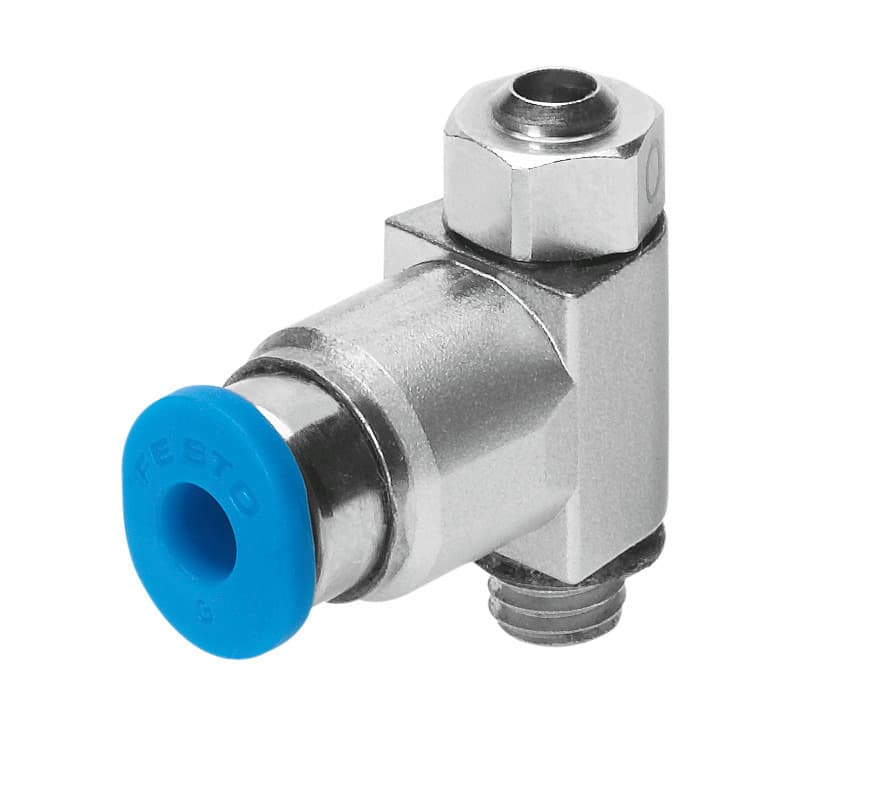

- 1The Festo GRLO-M5-QS-3-LF-C flow control valve is designed for precise control of compressed air, ensuring optimal performance in various industrial automation applications.
- 2With a standard nominal flow rate of 40 l/min and a maximum flow rate of 80 l/min, this valve provides efficient airflow management.
- 3The GRLO-M5-QS-3-LF-C features a throttle function, allowing for adjustable flow control to meet specific application needs.
- 4The valve is constructed with high-quality materials, including brass and NBR seals, ensuring durability and reliability in harsh environments.
- 5The GRLO-M5-QS-3-LF-C is compatible with compressed air in accordance with ISO8573-1:2010 [7:4:4], making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control function | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | QS-3 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 40l/min |
Operating pressure | 0bar 10bar | Ambient temperature | -10°C 60°C |
Mounting position | Any | Symbol | 00991454 |
Standard flow rate in flow control direction 6 -> 0 bar | 80l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Max. tightening torque | 1.5Nm | Product weight | 9g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
Manufacturer ID | 175054 |
Specifications may be subject to change without notice
