Product Model
grlz-1/8-qs-4-d
Selling Points

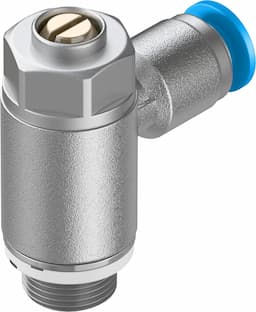

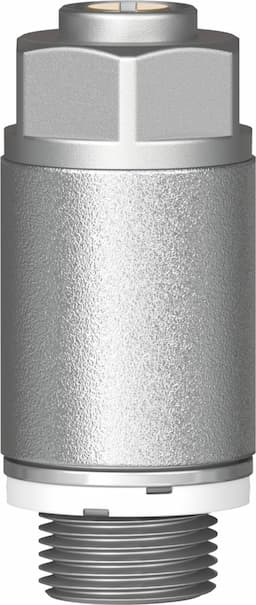

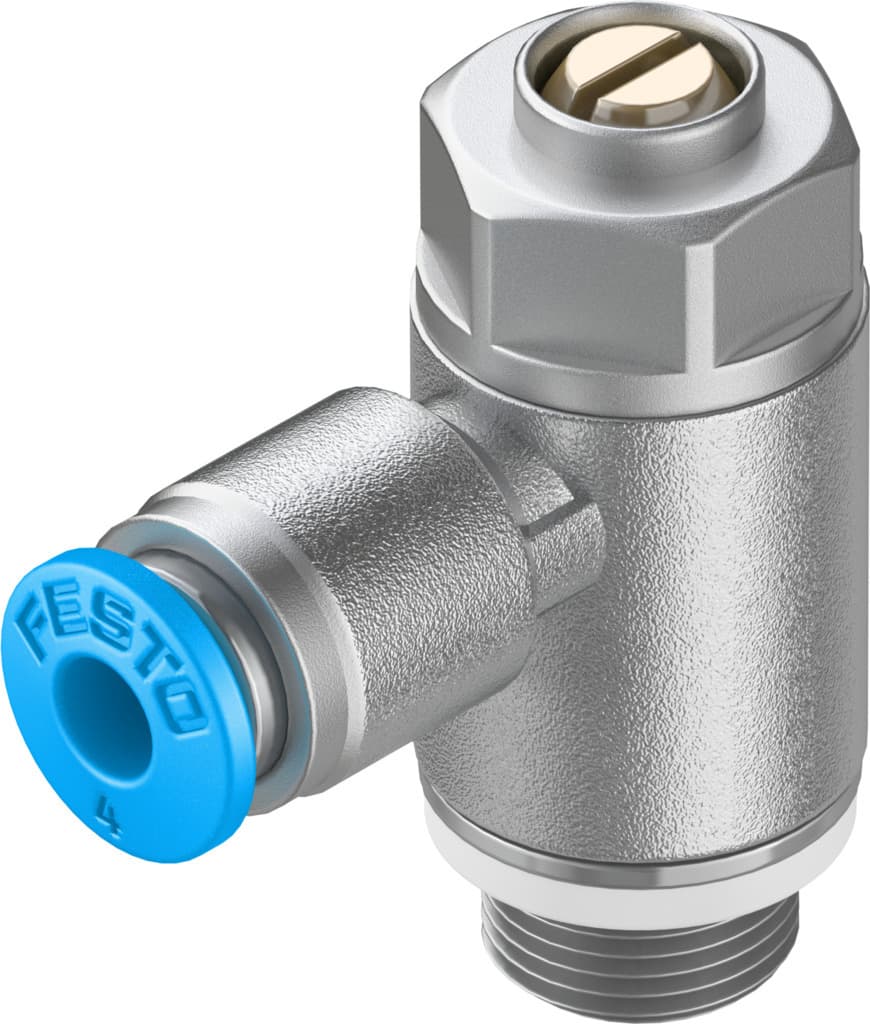

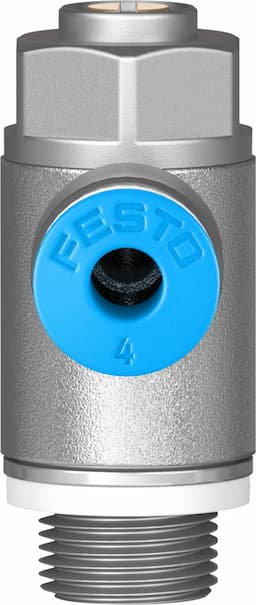

- 1The GRLZ-1/8-QS-4-D one-way flow control valve is designed to regulate compressed air flow in a single direction, ensuring optimal performance in various pneumatic applications.
- 2Built with high-quality materials, including wrought aluminum alloy for the screwed plug and die-cast zinc for the swivel fitting, this valve offers durability and reliability.
- 3Featuring a slotted head screw for adjustment and push-in L-fitting connections, the GRLZ-1/8-QS-4-D is easy to install and integrate into your pneumatic system.
- 4This valve operates within a temperature range of -10 °C to 60 °C and supports pressures from 0.2 to 10 bar, making it versatile for various industrial environments.
- 5The GRLZ-1/8-QS-4-D meets ISO 8573-1:2010 standards and is RoHS-compliant, ensuring it meets stringent quality and environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-4 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 160l/min |
Standard nominal flow rate in non-return direction | 120l/min 190l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 300l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 260l/min 290l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193157 |
Specifications may be subject to change without notice
