Product Model

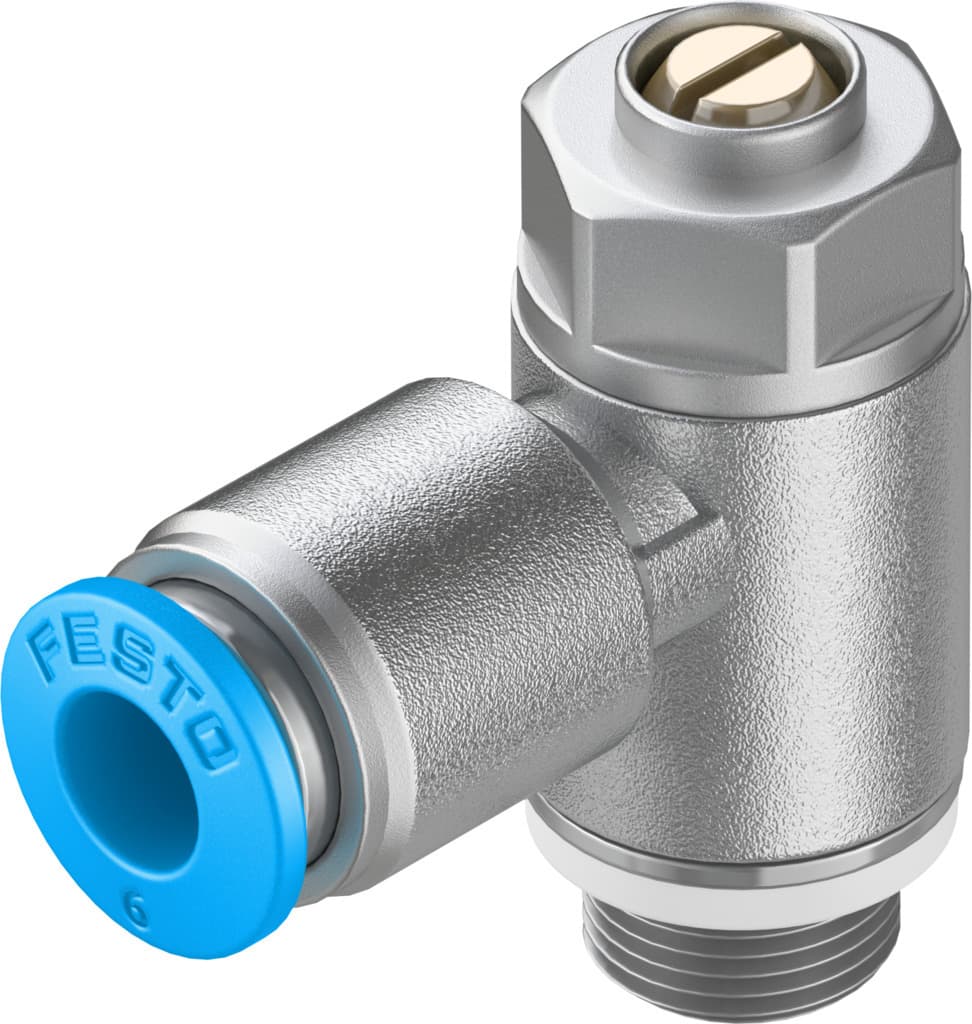

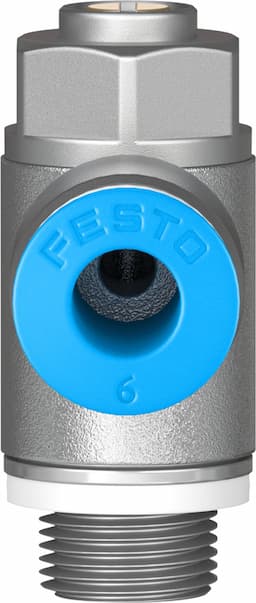

grlz-1/8-qs-6-d
Selling Points
- 1The Festo GRLZ-1/8-QS-6-D is a one-way flow control valve designed to manage compressed air flow in industrial applications, ensuring efficient and precise control.
- 2This valve features a standard nominal flow rate of 185 liters per minute in the flow control direction and 160 to 240 liters per minute in the blocked direction, making it versatile for various pneumatic systems.
- 3The GRLZ-1/8-QS-6-D operates within a temperature range of -10°C to 60°C and supports operating pressures from 0.2 to 10 bar, making it suitable for a wide range of industrial environments.
- 4The valve is constructed with high-quality materials, including wrought aluminum alloy for the screwed plug and die-cast zinc for the swivel fitting, ensuring durability and reliability.
- 5The Festo GRLZ-1/8-QS-6-D is compliant with RoHS regulations and meets cleanroom class 4 standards according to ISO 14644-1, making it ideal for applications requiring high cleanliness and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 185l/min |
Standard nominal flow rate in non-return direction | 160l/min 240l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 340l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 390l/min 460l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193158 |
Specifications may be subject to change without notice
