Product Model
grlz-m5-qs-3-d
Selling Points

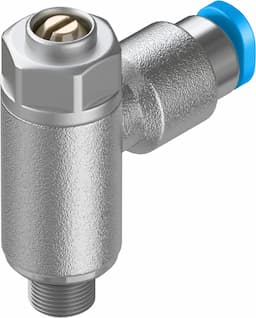

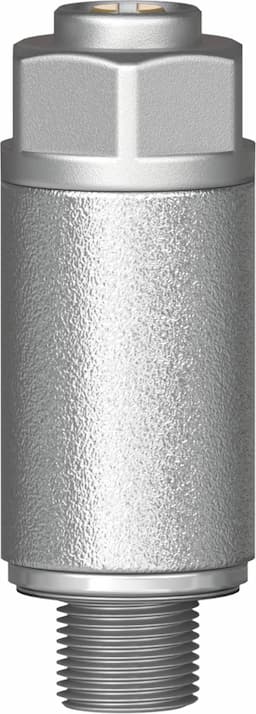

- 1The Festo GRLZ-M5-QS-3-D one-way flow control valve ensures precise air flow management with a nominal flow rate of 100 liters per minute in one-way flow control and 60 to 100 liters per minute in check valve direction.
- 2This valve features a slotted screw setting element and is screwable, making it easy to adjust and install in various industrial settings.
- 3The GRLZ-M5-QS-3-D operates within an ambient temperature range of -10 to 60 degrees Celsius and supports compressed air according to ISO 8573-1:2010.
- 4The valve is designed for arbitrary installation positions and can handle operating pressures from 0.2 to 10 bar, making it versatile for different applications.
- 5The Festo GRLZ-M5-QS-3-D is RoHS compliant and made from high-quality materials such as brass, NBR seals, and chromatised zinc pressure cast swivel connections, ensuring reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-3 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 100l/min |
Standard nominal flow rate in non-return direction | 60l/min 100l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 135l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 130l/min 160l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193153 |
Specifications may be subject to change without notice
