Product Model

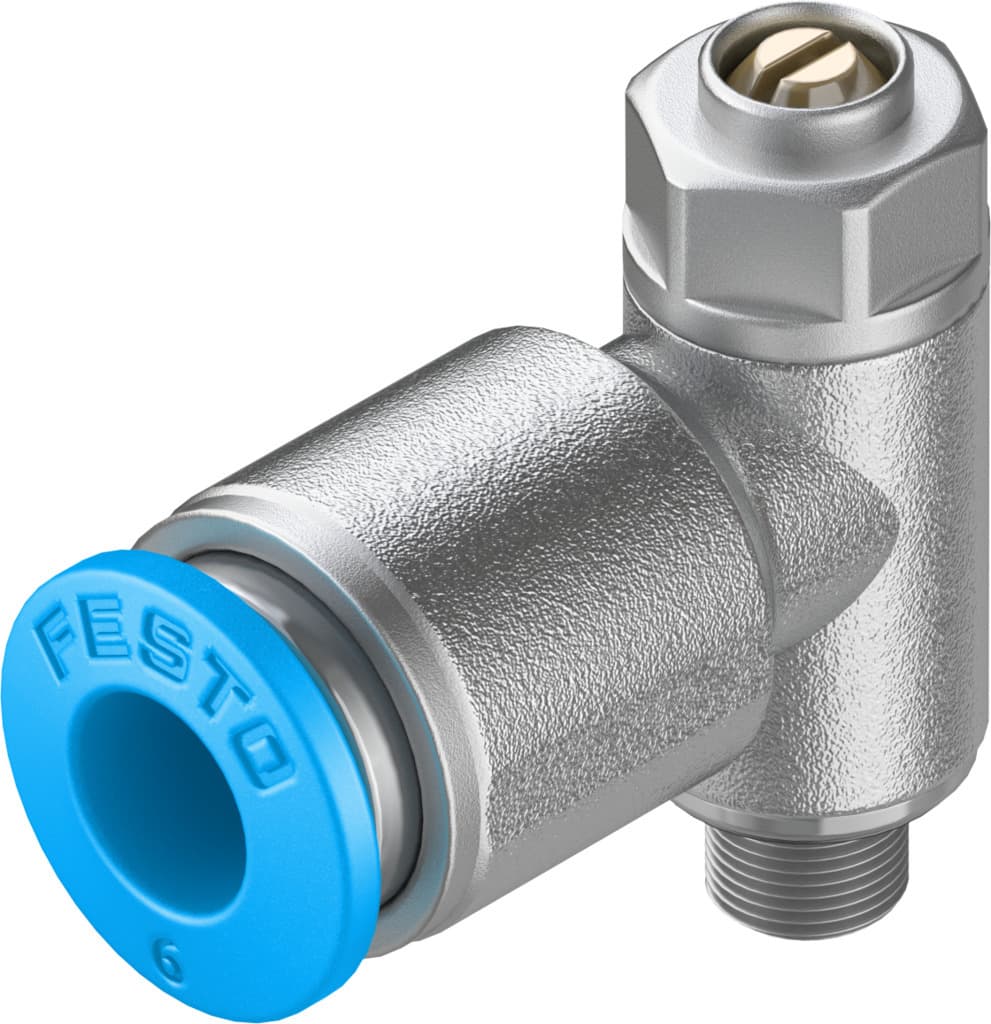

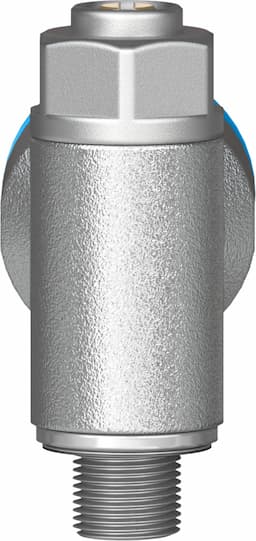

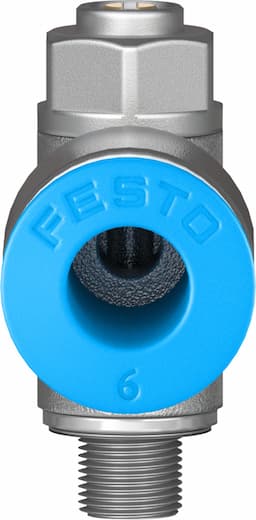

grlz-m5-qs-6-d
Selling Points
- 1The Festo GRLZ-M5-QS-6-D one-way flow control valve ensures non-return function, preventing backflow and maintaining airflow direction in pneumatic systems.
- 2This valve features a QS-6 pneumatic connection for easy integration with Festo's extensive range of pneumatic components, enhancing system reliability and efficiency.
- 3The slotted adjusting element allows for precise control over airflow, making it ideal for applications requiring precise air flow management.
- 4With a temperature range of -20°C to +60°C and operating pressure up to 10 bar, the GRLZ-M5-QS-6-D is suitable for various industrial environments and applications.
- 5Designed with high-quality materials, including a reinforced PA housing and high-alloy steel adjusting screw, this valve ensures durability and long service life in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-6 |
Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 115l/min |
Standard nominal flow rate in non-return direction | 70l/min 110l/min | Ambient temperature | -10°C 60°C |
Maritime classification | See certificate | Mounting position | Any |
Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
Standard flow rate in flow control direction 6 -> 0 bar | 170l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 160l/min 200l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
Material of screwed plug | Brass | Note on materials | RoHS-compliant |
Seals material | NBR | Releasing ring material | POM |
Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
Manufacturer ID | 193155 |
Specifications may be subject to change without notice
