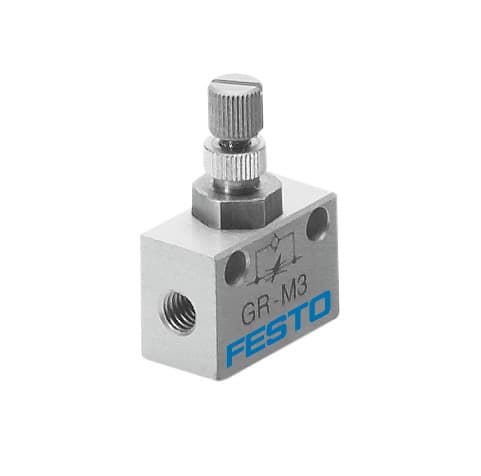

Festo GR-M3 One-Way Flow Control Valve - Precision Pneumatic Solutions

Selling Points

1The Festo GR-M3 one-way flow control valve offers precise control over pneumatic flow, ensuring reliable operation in various industrial applications.
2With a standard nominal flow rate of 29.5 l/min in the flow control direction and 26-27.5 l/min in the non-return direction, this valve provides optimal performance.
3Constructed from wrought aluminum alloy, the GR-M3 is durable and resistant to corrosion, making it suitable for a wide range of environments.
4The valve features a knurled screw adjustment component, allowing for easy and precise adjustment of the flow rate according to your needs.
5Compliant with RoHS regulations and designed for use with compressed air to ISO 8573-1:2010 [6:4:4], the GR-M3 ensures a safe and efficient operation in your pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Valve function	Flow control non-return function	Pneumatic connection 1	M3
Pneumatic connection 2	M3	Adjusting element	Knurled screw
Type of mounting	Optionally: Front panel mounting With through-hole	Standard nominal flow rate in flow control direction	29.5l/min
Standard nominal flow rate in non-return direction	26l/min 27.5l/min	Operating pressure	0.3bar 8bar
Ambient temperature	-10°C 60°C	Housing material	Wrought aluminum alloy
Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Mounting position	Any
Symbol	00991453	Operating medium	Compressed air as per ISO 8573-1:2010 [6:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Temperature of medium	-10°C 60°C	Product weight	2.5g
Note on materials	RoHS-compliant	Seals material	NBR
Material of adjusting screw	Brass	Manufacturer ID	15899

Specifications may be subject to change without notice
