Product Model
gro-1/4
Selling Points

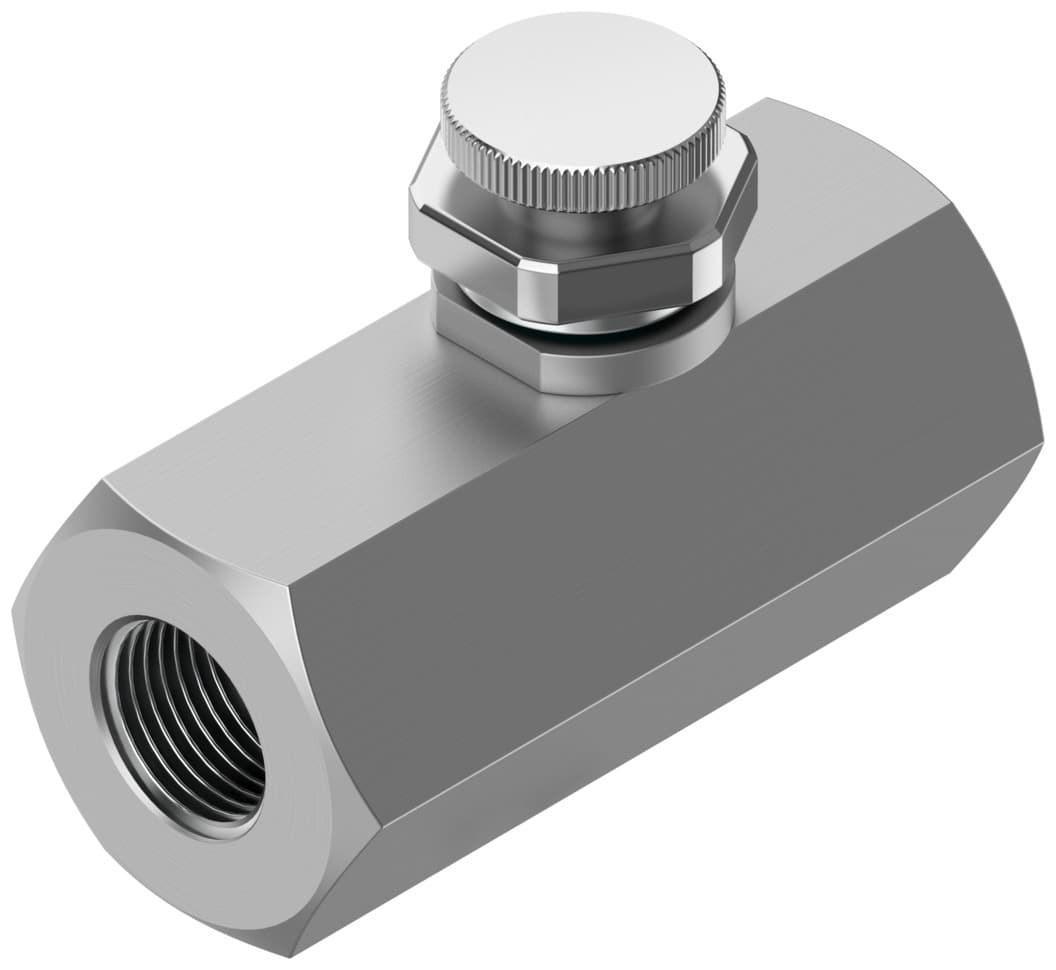

- 1The Festo GRO-1/4 throttle valve offers precise flow control with a standard nominal flow rate of 350 l/min, making it ideal for various pneumatic applications.
- 2This valve features a knurled screw adjustment component for easy and precise control over the flow rate, ensuring reliable operation.
- 3The GRO-1/4 is designed for in-line installation and is compatible with G1/4 pneumatic connections, providing flexibility in system design.
- 4The valve operates within a wide temperature range of -20 °C to 60 °C and supports compressed air to ISO 8573-1:2010 standards, ensuring durability and reliability.
- 5The Festo GRO-1/4 is RoHS-compliant and features NBR seals, making it an environmentally friendly and long-lasting solution for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control function | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Adjusting element | Knurled screw |
Type of mounting | Line installation | Standard nominal flow rate in flow control direction | 350l/min |
Operating pressure | 0bar 10bar | Ambient temperature | -20°C 60°C |
Housing material | Wrought aluminum alloy | Mounting position | Any |
Symbol | 00991454 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -20°C 60°C | Product weight | 80g |
Note on materials | RoHS-compliant | Seals material | NBR |
Material of adjusting screw | Steel Galvanized | Manufacturer ID | 2109 |
Specifications may be subject to change without notice
