Product Model
gro-1/8-b
Selling Points

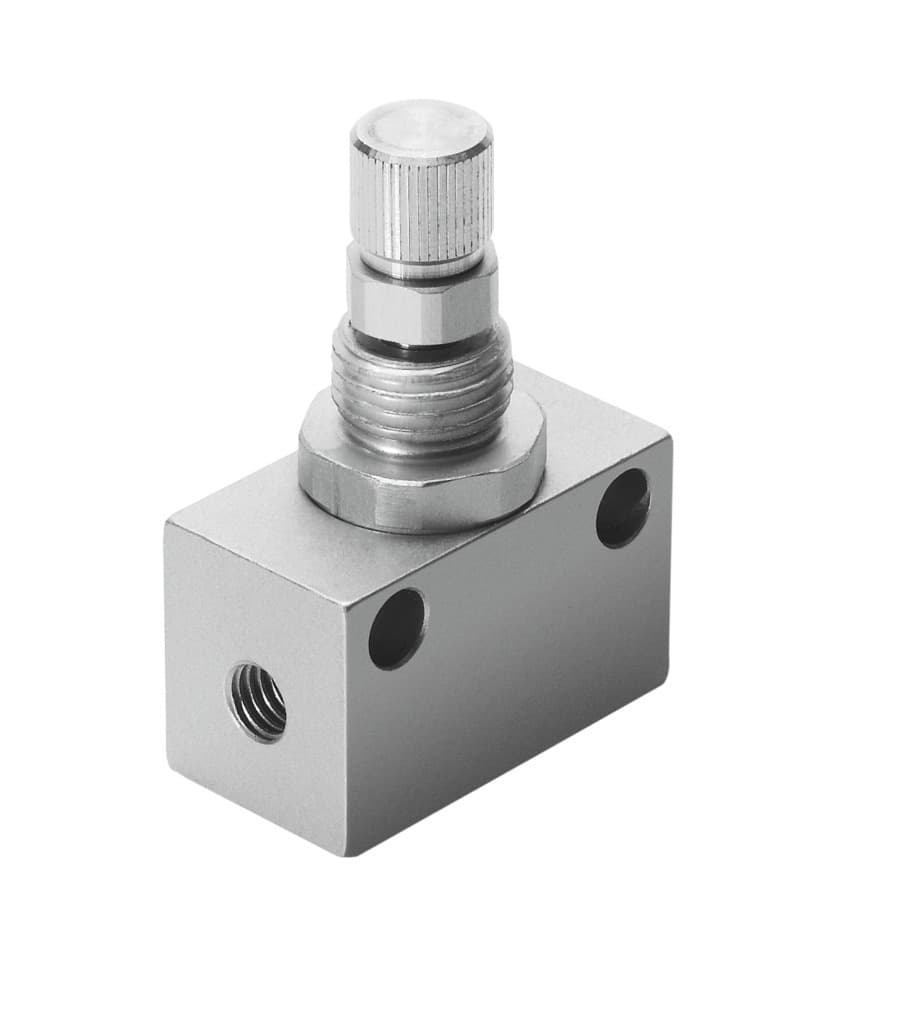

- 1The Festo GRO-1/8-B throttle valve offers precise flow control with a standard nominal flow rate of 210 l/min, making it ideal for various pneumatic applications.
- 2This valve features a knurled screw adjustment component, allowing for easy and precise control over the flow rate.
- 3The GRO-1/8-B is designed for front panel mounting with a through-hole, providing flexibility in installation options.
- 4The valve is RoHS-compliant and made from high-quality materials, including NBR seals and a wrought aluminum alloy housing.
- 5The Festo GRO-1/8-B is certified for use in hazardous environments, meeting ATEX Zone 1, Zone 2, Zone 21, and Zone 22 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control function | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Adjusting element | Knurled screw |
Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 210l/min |
Operating pressure | 0bar 10bar | Ambient temperature | -20°C 60°C |
Housing material | Wrought aluminum alloy | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Nominal width | 3mm | Mounting position | Any |
Symbol | 00991454 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -20°C 60°C | Product weight | 31g |
Note on materials | RoHS-compliant | Seals material | NBR |
Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
Sleeve material | POM | Manufacturer ID | 151216 |
Specifications may be subject to change without notice
