Product Model

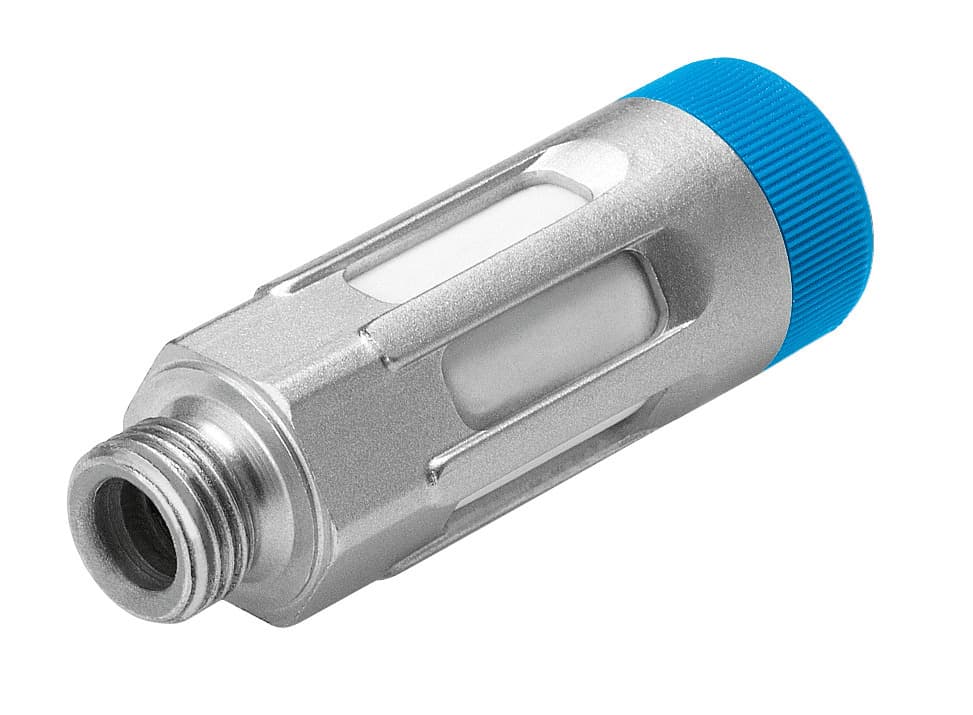

gru-3/4-b
Selling Points
- 1The Festo GRU-3/4-B flow control/silencer offers precise control over pneumatic flow rates, ranging from 0 to 8000 l/min, making it suitable for a wide range of industrial applications.
- 2Equipped with a slotted screw adjusting element, this valve provides easy and accurate setting of flow rates, ensuring reliable performance in various environments.
- 3The GRU-3/4-B features a G3/4 pneumatic connection and is designed for arbitrary installation positions, offering flexibility in system integration.
- 4This flow control/silencer is built with durable materials, including aluminum die casting for the stud and housing, ensuring robust construction and long-lasting performance.
- 5The product is RoHS compliant and suitable for use with compressed air to ISO 8573-1:2010, making it a reliable choice for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Sound pressure flow control function | Selection of additional function | with muffler |
Pneumatic connection 1 | G3/4 | Adjusting element | Slotted screw |
Type of mounting | Screw-in | Standard flow rate 6->0 bar | 0l/min 8000l/min |
Ambient temperature | -10°C 70°C | Housing material | Aluminum |
Mounting position | Any | Symbol | 00991451 |
Operating pressure for entire temperature range | 0bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 70°C | Product weight | 170g |
Cushioning insert material | PE | Material of screwed plug | Die-cast aluminum |
Note on materials | RoHS-compliant | Material of adjusting screw | PA |
Manufacturer ID | 9520 |
Specifications may be subject to change without notice
