Product Model
he-1/8-d-mini-npt
Selling Points

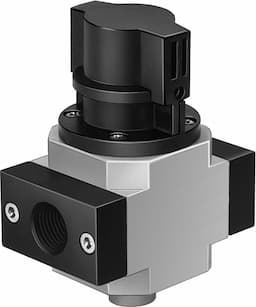

- 1The Festo HE-1/8-D-MINI-NPT on/off valve is a compact, reliable solution for pneumatic systems, offering a flow rate of up to 1000 l/min and operating pressure of 0-16 bar.
- 2This valve features a piston spool design with a bistable manual override function, ensuring easy operation and visual recognition of the switching position.
- 3Available in NPT thread sizes (1/8 NPT), it is specifically designed for North American applications, providing a secure and efficient connection.
- 4The HE-1/8-D-MINI-NPT valve is built to withstand various operating conditions, including ambient temperatures from -10°C to 60°C, making it suitable for diverse industrial environments.
- 5With its robust construction and compliance with ISO standards, this valve ensures high reliability and durability, reducing the risk of common cause failures in pneumatic installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 40mm | Structural design | Piston gate valve |
Actuation type | Manual | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | None |
Symbol | 00995571 | Valve function | 3/2, bistable |
Operating pressure | 0bar 16bar | C value | 4.4l/sbar |
b-value | 0.44 | Standard nominal flow rate | 1000l/min |
Duty cycle | 100% | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Type of mounting | Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 192g |
Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
Pneumatic connection 3 | G1/8 | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 173892 |
Specifications may be subject to change without notice
