Product Model
hee-1-d-maxi-110-npt
Selling Points

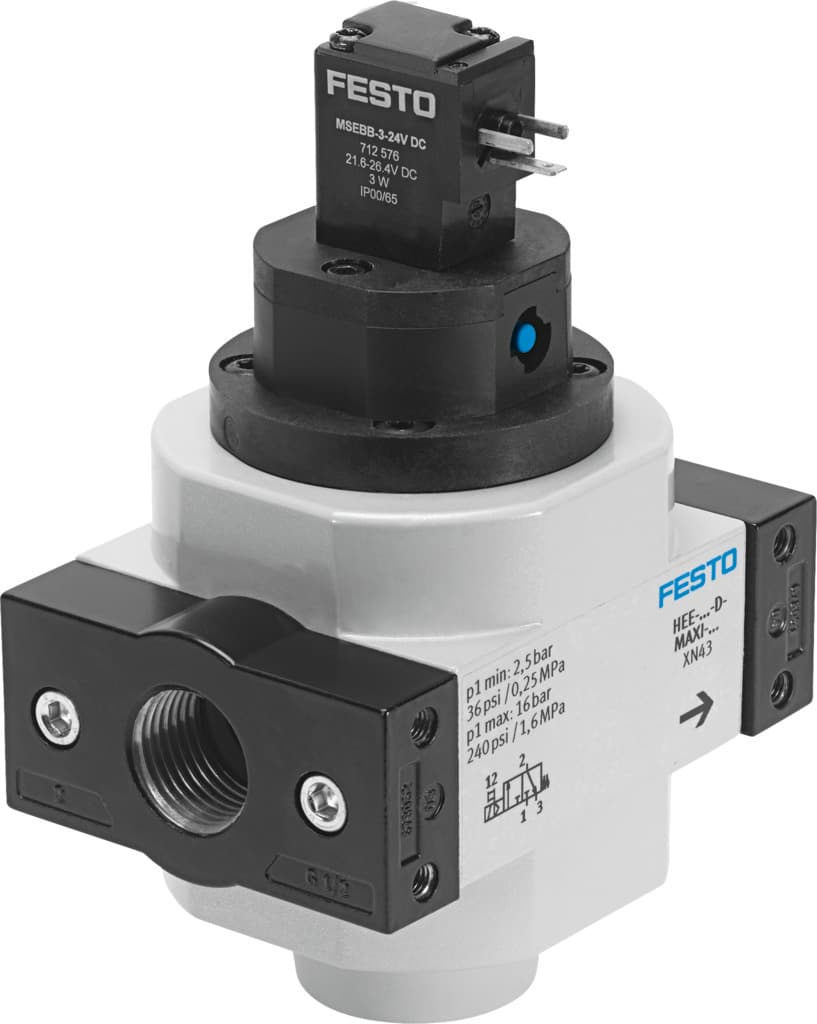

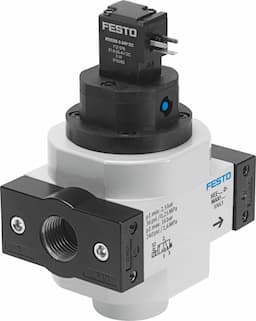

- 1The Festo HEE-1-D-MAXI-110-NPT shut off valve is designed for reliable pneumatic operations, ensuring consistent performance in various industrial applications.
- 2This valve features a piloted piston spool with a mechanical spring return, providing precise control and reliable shut-off functionality.
- 3The valve operates within a pressure range of 2.5 to 16 bar, making it suitable for a wide range of pneumatic systems.
- 4The HEE-1-D-MAXI-110-NPT is built with corrosion-resistant materials, conforming to CRC 2 standards, ensuring durability in demanding environments.
- 5This product is CE marked and complies with EU low-voltage directives, ensuring safety and regulatory compliance in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 65mm | Structural design | Piston gate valve |
Actuation type | Electrical | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | Detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 2.5bar 16bar | Lap | Overlap |
C value | 27.6l/sbar | b-value | 0.32 |
Standard nominal flow rate | 6500l/min | Duty cycle | 100% |
Coil characteristics | 110 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Type of mounting | Line installation With accessories |
Mounting position | Any | Flow direction | Non-reversible |
Product weight | 800g | Pneumatic connection 1 | 1 NPT |
Pneumatic connection 2 | 1 NPT | Pneumatic connection 3 | G3/8 |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 | Signal status display | With accessories |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 173915 |
Specifications may be subject to change without notice
