Product Model
hee-3/4-d-midi-110-npt
Selling Points

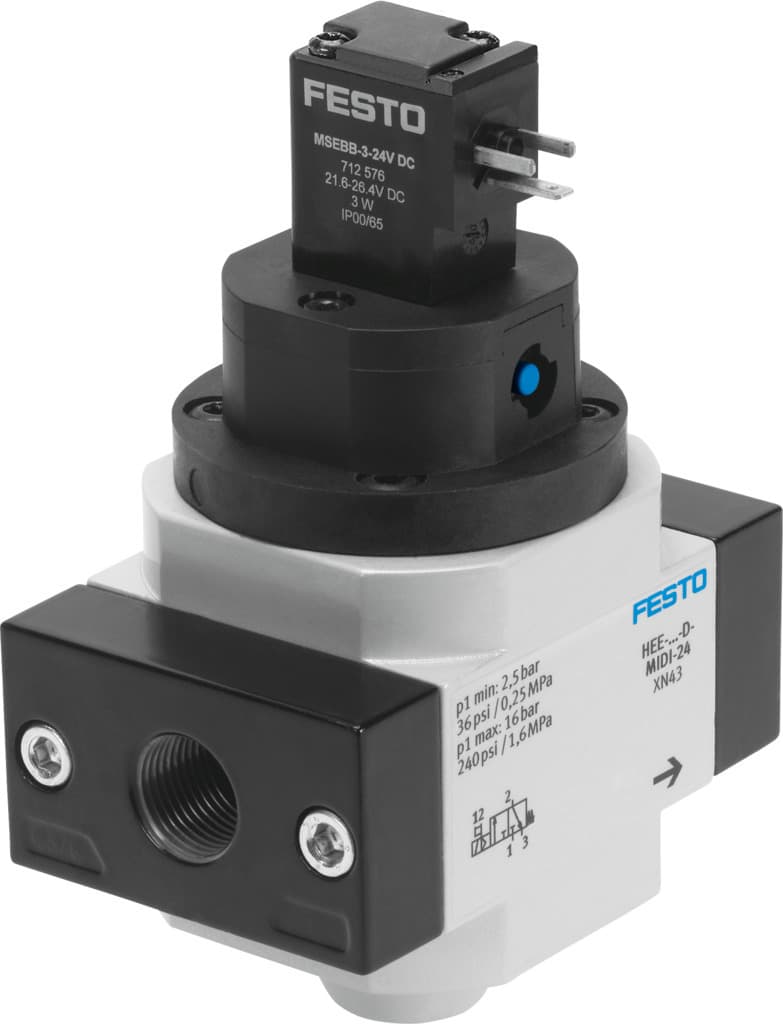

- 1The Festo HEE-3/4-D-MIDI-110-NPT is a reliable pneumatic valve designed for precise control in various industrial applications. It features a 3/4 inch NPT port size and is compatible with 110V AC power.
- 2This valve offers a compact design with a grid dimension of 55 mm (without connecting plates), making it ideal for space-constrained environments. It also supports both 110V AC and 24V DC power options.
- 3The HEE-3/4-D-MIDI-110-NPT valve is equipped with a characteristic coil that provides a pick-up power of 5.0 VA and a holding power of 3.7 VA at 50/60 Hz. This ensures consistent performance under various operating conditions.
- 4This valve is part of Festo's extensive range of pneumatic components, offering standardized dimensions and mounting interfaces for easy integration into existing systems. It supports both G1/4 and G3/8 pneumatic connections.
- 5The Festo HEE-3/4-D-MIDI-110-NPT valve is known for its high-quality construction and reliable operation, making it a trusted choice for industrial automation applications. It is also part of Festo's commitment to delivering cost-effective products with exceptional quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 55mm | Structural design | Piston gate valve |
Actuation type | Electrical | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | Detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 2.5bar 16bar | Lap | Overlap |
C value | 17.3l/sbar | b-value | 0.41 |
Standard nominal flow rate | 3800l/min | Duty cycle | 100% |
Coil characteristics | 110 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Type of mounting | Line installation With accessories |
Mounting position | Any | Flow direction | Non-reversible |
Product weight | 500g | Pneumatic connection 1 | 3/4 NPT |
Pneumatic connection 2 | 3/4 NPT | Pneumatic connection 3 | G1/4 |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 | Signal status display | With accessories |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 173911 |
Specifications may be subject to change without notice
