Product Model
hee-3/8-d-mini-24-npt
Selling Points

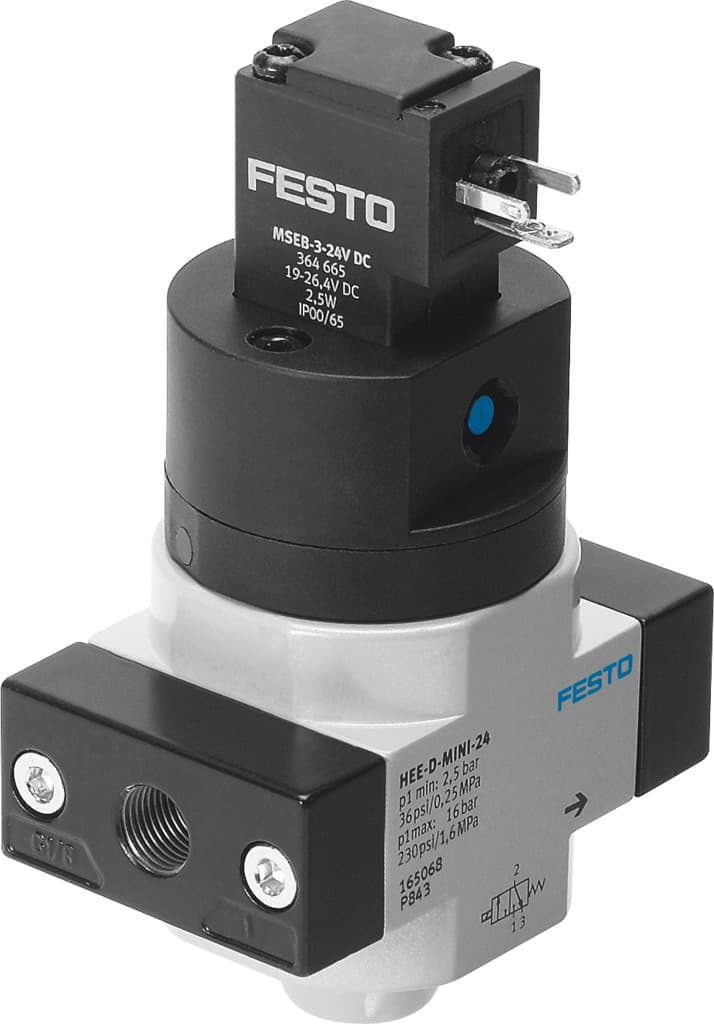

- 1The Festo HEE-3/8-D-MINI-24-NPT on/off valve is designed for precise pneumatic control, offering reliable operation with 24 V DC and 110 V AC options.
- 2This valve features a compact size with a grid dimension of 40 mm (without connecting plates), making it suitable for various applications.
- 3The HEE-3/8-D-MINI-24-NPT supports multiple pneumatic connections, including G1/8, G1/4, G3/8, and NPT threads, ensuring versatility in setup.
- 4With a power consumption of 2.5 W and a weight of 500 g, this valve is energy-efficient and easy to handle.
- 5The valve is designed with a mechanical spring for detenting and can be piloted electrically, providing a reliable and efficient control mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 40mm | Structural design | Piston gate valve |
Actuation type | Electrical | Sealing principle | Soft |
Exhaust air function | Without flow control option | Manual override | Detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 2.5bar 16bar | Lap | Overlap |
C value | 7.3l/sbar | b-value | 0.28 |
Standard nominal flow rate | 1600l/min | Duty cycle | 100% |
Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Type of mounting | Line installation With accessories |
Mounting position | Any | Flow direction | Non-reversible |
Product weight | 223g | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 3 | G1/8 |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 | Signal status display | With accessories |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 173904 |
Specifications may be subject to change without notice
