Product Model

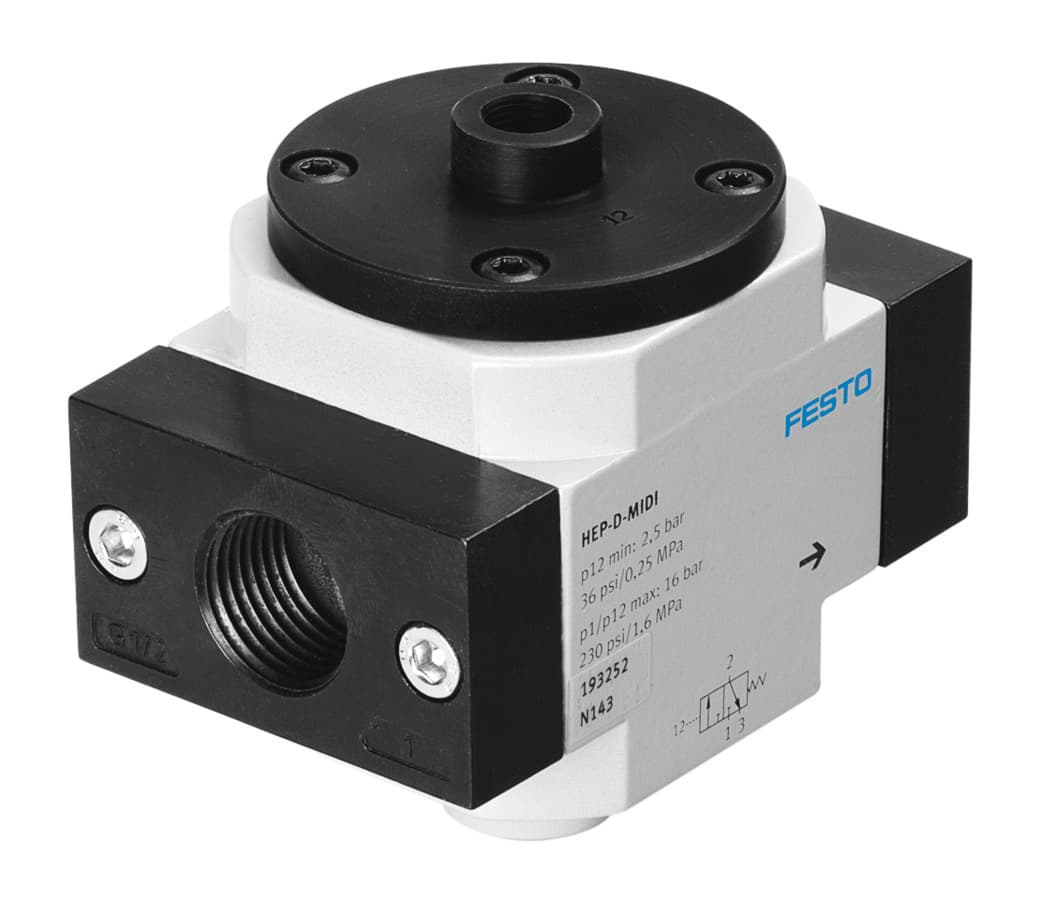

hep-3/8-d-midi
Selling Points
- 1The HEP-3/8-D-MIDI is engineered to withstand harsh industrial conditions, ensuring consistent performance over millions of cycles.
- 2This 3/2-way normally closed pneumatic valve offers soft sealing and non-reversing flow, providing reliable shut-off and precise control in various applications.
- 3The midi size of the HEP-3/8-D-MIDI makes it perfect for compact designs and space-constrained environments, enhancing overall system efficiency.
- 4The valve complies with all specifications in data sheets, catalogues, user documentation, and general operating conditions, ensuring seamless integration into your system.
- 5The HEP-3/8-D-MIDI operates effectively within a wide temperature range of -10°C to +60°C, making it suitable for diverse industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Pneumatic |
Sealing principle | Soft | Exhaust air function | Without flow control option |
Manual override | None | Reset method | Mechanical spring |
Symbol | 00991173 | Valve function | 3/2, closed, monostable |
Operating pressure | 0bar 16bar | Pilot pressure | 3bar 16bar |
C value | 15.5l/sbar | b-value | 0.33 |
Standard nominal flow rate | 3500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Type of mounting | Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 500g |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G1/4 | Pilot air port 12 | G1/8 |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 193251 |
Specifications may be subject to change without notice
